GENERAL FEATURES
The BENCHMARK is available in either manual or CNC configurations. Manual machines can be upgraded to the full CNC version later on site, offering the possibility of a two-step investment.
FEATURES AND BENEFITS
- Advanced ultra-rigid alloy platform
- Rapid thermal diffusion through the frame when the temperature changes
- FEA design ensures optimal moment of inertia and stiffness, enabling strong acceleration
- Base composed of a single piece of granite with M8 threaded top inserts in a large checkerboard design
- Z-axis pneumatic counterbalance
- Measuring scales with 0.1 micron resolution with dynamic signal processing
- Fully digital motion control with probe path fusion for optimal CMM performance
- Friction reducers with near-zero hysteresis on all axes
- Passive vibration damping system that isolates from external vibrations
- Free access to the measurement area of the CMM
- Maximum positioning speed: 500 mm/sec
- Maximum acceleration: 1500 mm/sec2
ENVIRONMENT
- Temperature rating: 20 °C
- Allowable temperature range: 18 - 22 °C (extended range 16 - 26 °C)
- Temperature gradient: 0.5 °C/hour - 2 °C/day (extended range 5 °C/day)
- Operating temperature range: 15 - 35 °C
- Relative humidity: 40 - 80% (no condensation)
- Acceptable vibrations: 30 mm/ sec2 1-10 Hz | 15mm/ sec2 10-20 Hz | 50 mm/ sec2 20-100 Hz
SERVICES
- Minimum air supply: 5 bar (72 PSI)
- Air consumption: 90 NL/min (3 cfm)
- Supply voltage: 230 V 50 Hz or 110 V 60 Hz
- Maximum power consumption: 10 A, 1200 W

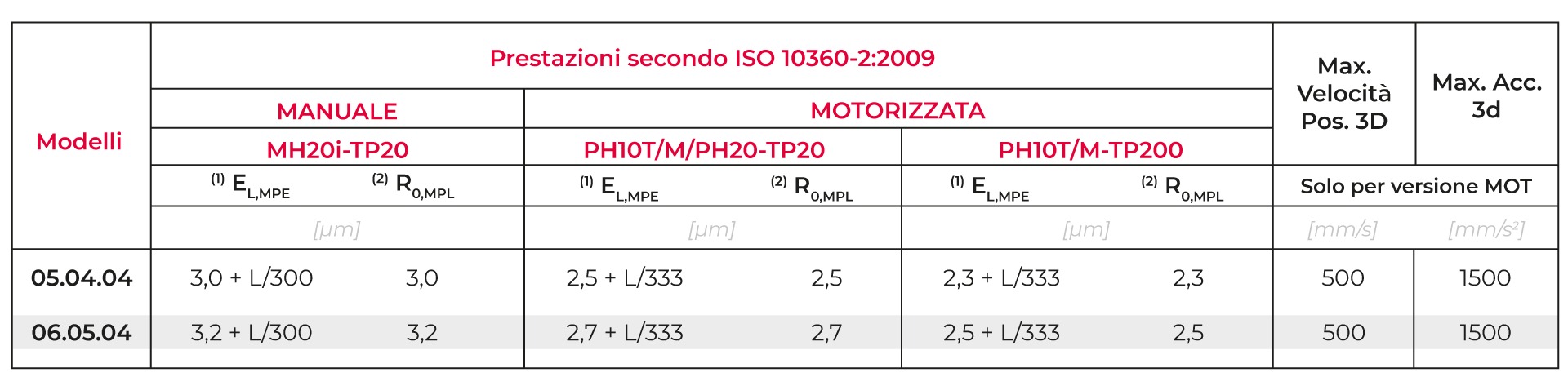

PERFORMANCE
Each COORD3 CMM is
tested according to UNI EN ISO 10360-2 standards.
The indicated performance is valid under the following conditions:
- PH10T/M/PH20-TP20/TP200: SF module, stylus Ø4 mm x 10 mm
- L = measurement length in mm
- Multiprobe thermal compensation (Optional)
- Ambient temperature conditions: T: 18 to 22 °C; Maximum gradients: 0.5 °K/h - 2.0 °K/24h - 0.5 °K/m
[1] Maximum allowable error for length measurements according to ISO 10360 2:2009
[2] Maximum repeatability limit according to ISO 10360 2:2009
OPTIONS
- CMM's optional Touch Station for superior user ergonomics
- Wireless dynamic thermal compensation of the machine and components
- Pneumatic vibration isolation system
- Fixing kit for modular parts
- Modular compartment of the CMM
- Kit for upgrade from manual Benchmark to CNC
- Models and dimensions
COORD3 BENCHMARK CMMs are available with the following measuring strokes (X.Y.Z mm):
6.5.4
