GENERAL FEATURES

ARES is available in 500 mm and 700 mm deck width versions and undoubtedly stands out as the ideal CMM for workshops.

FEATURES AND BENEFITS

Ultra-rigid alloy frame to ensure maximum rigidity for scanning applications
Structure with rapid thermal diffusion for changes in environmental conditions
FEA-designed bridge girder extrusion, allowing optimal moment of inertia for minimal deflection at high accelerations
M8 threaded table that fits into the large checkerboard layout.
Rigid air bearings for high bearing clearance coefficients
Pneumatic counterbalancing of the Z-axis.
Free-fluctuation resolution measurement scales of 0.1 micron incorporating dynamic signal processing.
Fully digital motion control with probe path fusion for optimal performance
Friction reducers with near-zero hysteresis on all axes
Passive vibration damping system that isolates external vibrations
Free access to the measurement area from all sides
Maximum positioning speed: 517 mm/sec
Maximum acceleration: 1730 mm/sec2

ARES NT

Silicon carbide Z-axis column further reinforcing rigidity
OptionalRenishaw TONiC resolution measurement scalesof 0.1 micron
Dynamic wireless temperature compensation system including part temperature sensor.

ENVIRONMENT

Temperature rating: 20 °C
Metrological temperature range: 18 - 22 °C
Temperature gradient: 0.5 °C/hour - 2 °C/day - 0.5 °C/meter
Operating temperature range : 15 - 35°C
Relative humidity: 40 - 80% (without condensation)
Acceptable vibrations: 30 mm/sec2 1-10 Hz | 15mm/sec2 10-20 Hz | 50 mm/ sec2 20-100 Hz

SERVICES

Minimum air supply: 5 bar
Air consumption: 100 Nl/min
Supply voltage: 230 V 50 Hz or 110 V 60 Hz (+/- 2% single phase)
Low power consumption: 10 A 1200 W (1600 W on larger models)

PERFORMANCE

Each COORD3 CMM is tested according to UNI EN ISO 10360-2 standards. ARES 05.05 / 07.05

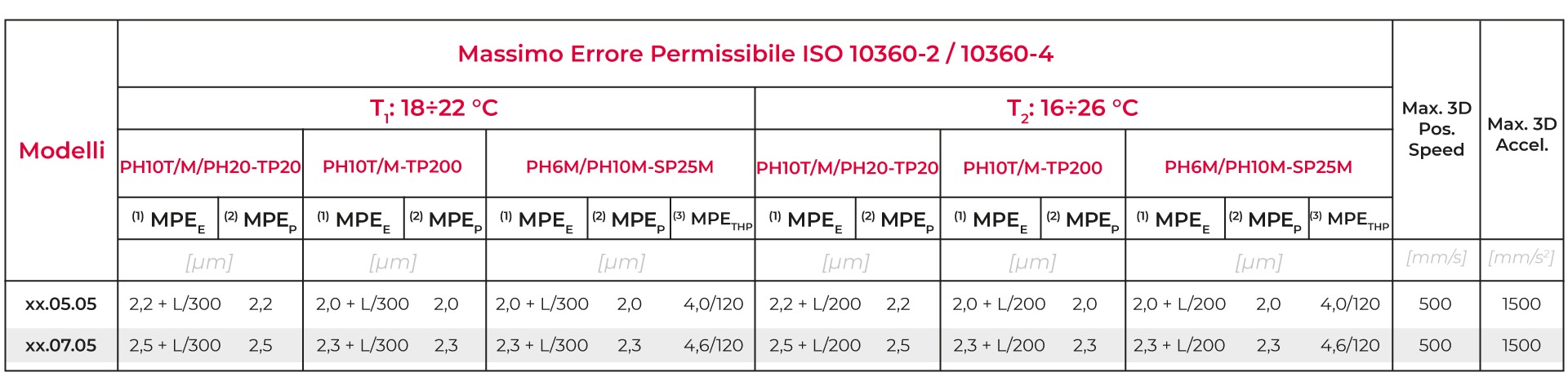

The indicated performance is valid under the following conditions: - PH10T/M/PH20-TP20/TP-200: SF module, stylus Ø 4mm x 10mm - PH6M/PH10M-SP25M: SM1, stylus Ø 5mm x 50mm - L=measurement length in mm - Multi-probe temperature compensation (optional) - Ambient temperature conditions: _{T1 :}18÷22°C; Gradients max: 0.5°C/h - 2.0°C/24h - 0.5°C/m T2: 16÷26°C; Gradients max: 1.0 °C/h - 5.0 °C/24h - 1.0 °C/m ^[1] CMM indication error on dimension measurements according to ISO 10360-2 ^[2] Point grip error according to ISO standard 10360-2 ^[3] Point grip error on scanning according to ISO 10360-4 for SP25M touch probes. ARES NT 05.05 / 07.05 / 07.07

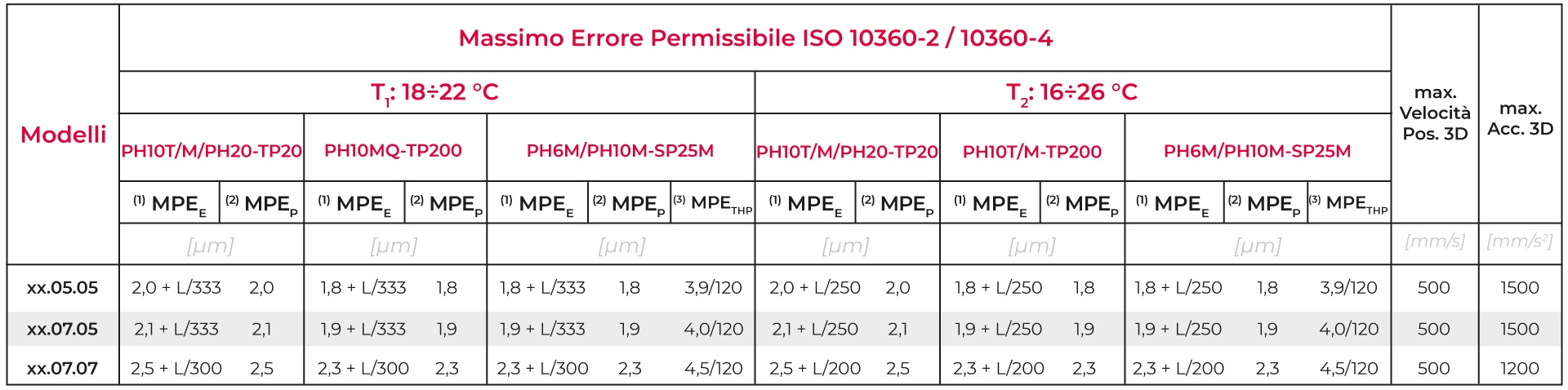

The indicated performance is valid under the following conditions: - PH10T/M/PH20-TP20/TP-200: SF module, stylus Ø 4mm x 10mm - PH6M/PH10M-SP25M: SM1, stylus Ø 5mm x 50mm - L=measurement length in mm - Multi-probe temperature compensation (optional) - Ambient temperature conditions: _{T1 :}18÷22°C; Gradients max: 0.5 °K/h - 2.0 °K/24h - 0.5°K/m T2 : 16÷26°C; Gradients max: 1.0 °K/h - 5.0 °K/24h - 1.0 °K/m ^[1] CMM indication error on dimension measurements according to ISO 10360-2 ^[2] Point grip error according to ISO standard 10360-2 ^[3] Point grip error on scanning according to ISO 10360-4 for SP25M touch probes. OPTIONS

Laser scanning sensor
Wireless dynamic thermal compensation of the machine and components
Pneumatic vibration isolation system
Modular parts locking kit
Models and dimensions COORD3 ARES CMMs are available with the following measuring strokes (X.Y.Z mm): 7.5.5 7.7.5 / 10.7.5 / 12.7.5 7.7.7 / 10.7.7 / 12.7.7
