GENERAL FEATURES

FEATURES AND BENEFITS

Ultra-rigid mechanical structure for maximum accuracy in scanning
Highly responsive structure to environmental temperature changes
CAD FEA-assisted design of the extruded aluminum alloy crossmember to minimize inertial effects at maximum dynamics
Monolithic granite support surface with integral dovetailed slide rail
Grid of M8 holes for fixing equipment on the support surface
Sliding system on pneumostatic pads with ultra-rigid isostatic support on all measuring axes
Z-axis pneumatic balancing
High-resolution (0.1-micron) carrier-scrolling optical scales with dynamic signal processing
Digital trajectory control system for metrological performance optimization
Hysteresis-free toothed belt drive system on all axes
Passive environmental vibration isolation system
Easy access to the measurement volume
Vector positioning speed up to 866mm/sec
Vector acceleration up to 1500mm/sec2

ENVIRONMENT

Temperature rating for metrological performance: 20°C
Temperature range: 18 - 22°C (extended range 16 - 26°C)
Maximum allowable temperature gradients: 0.5°C/hour - 2°C/24 hours (extended range 5°C/24 hours)
Operating temperature range: 15 - 35°C
Relative humidity: 40 - 80% (non-condensing)
Maximum ambient vibrations: 30 mm/sec2 1-10Hz | 15 mm/sec2 10-20Hz | 50 mm/sec2 20-100Hz

FEEDS

Minimum pressure: 5 Bar -72PSI
Compressed air consumption: 100Nl/min
Power supply: 230v 50Hz or 110v 60Hz;
Maximum power consumption: 10A 1200W

PERFORMANCE

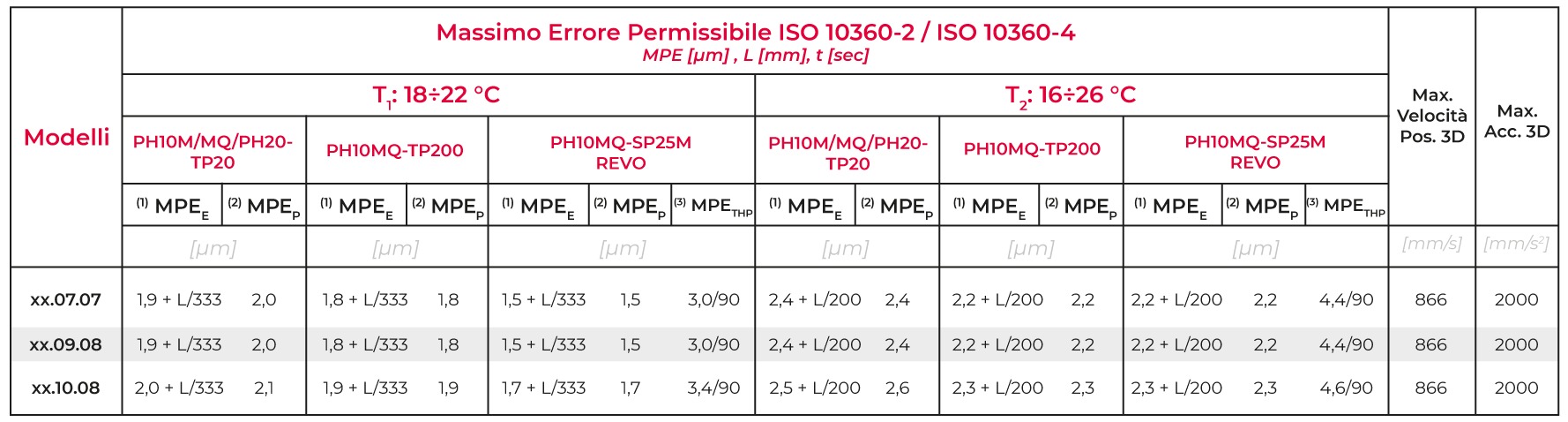

Each COORD3 CMM is tested according to UNI EN ISO 10360-2 standards. UNIVERSAL 07.07 - 09.08 - 10.08

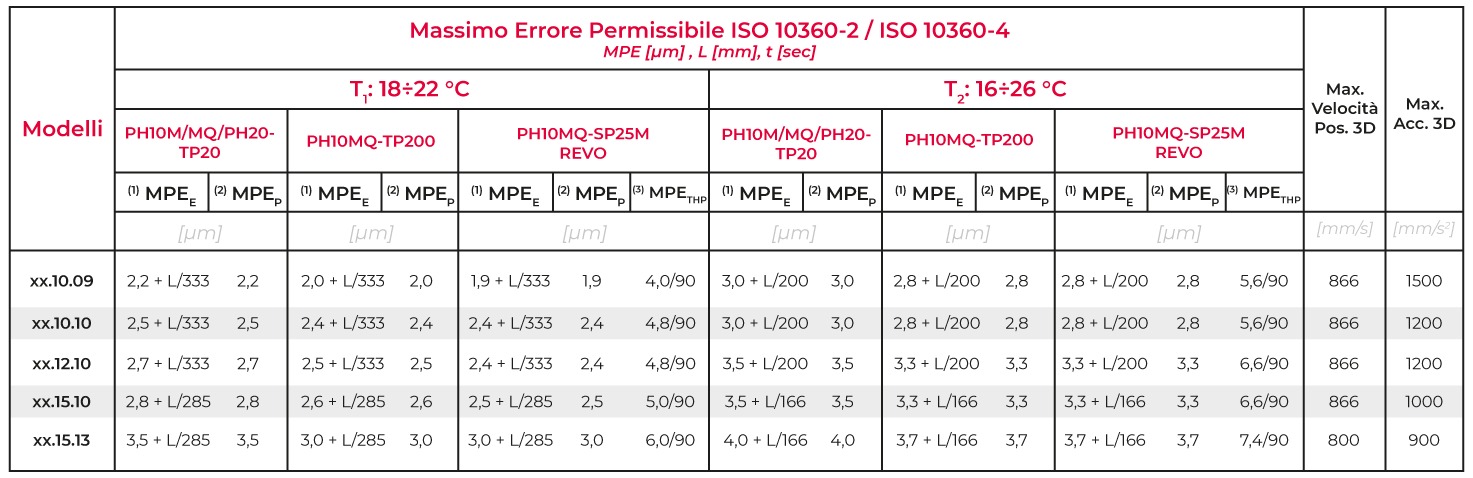

The indicated performance is valid under the following conditions: - PH10M/PH10MQ/PH20/TP20/TP200: Ø4mm x 10mm stylus - PH10MQ/SP25: SM1, stylus Ø 5mm x 50mm - REVO: RSP2/RSH175-RSP3-1/SH25-1, 20mm stylus - L= measurement length in mm - Ambient temperature conditions: _{T1 :}18÷22°C; Max gradients: 1.0 °K/h - 2.0 °K/24h - 1.0°K/m T2 : 16÷26°C; Gradients max: 1.0 °K/h - 5.0 °K/24h - 1.0°K/m ^[1] Maximum Permissible Error on length measurements according to ISO 10360-2 ^[2] Maximum Permissible Error on point grip according to ISO 10360-2 ^[3] Maximum Permissible Error of Point Grip on scanning according to ISO 10360-4 for touch probes SP25M/SP80, ball Ø 25 mm - REVO RSP3-1 UNIVERSAL 10.09 - 10.10 - 15.10 - 15.13

The indicated performance is valid under the following conditions: - PH10M/PH10MQ/PH20/TP20/TP200: Ø4mm x 10mm stylus - PH10MQ/SP25: SM1, stylus Ø 5mm x 50mm - REVO: RSP2/RSH175-RSP3-1/SH25-1, 20mm stylus - L= measurement length in mm - Ambient temperature conditions: _{T1 :}18÷22°C; Maximum gradients: 1.0 °K/h - 2.0 °K/24h - 1.0 °K/m T2: 16÷26°C; Gradients max: 1.0 °K/h - 5.0 °K/24h - 1.0 °K/m ^[1] Maximum Permissible Error on length measurements according to ISO 10360-2 ^[2] Maximum Permissible Error on point grip according to ISO 10360-2 ^[3]Maximum Permissible Point Grip Error on scanning according to ISO 10360-4 for touch probes SP25/M/SP80/REVO, sample ball Ø 25 mm - REVO RSP3 OPTIONS
