LINE.SPECTOR Reading bridges.

Danh mục:

Mabri

Từ khóa:

3d vina , hiệu chuẩn , hiệu chuẩn thiết bị , máy đo 2d , máy đo 3d , máy đo cmm , sửa máy đo 2d , sửa máy đo 3d , sửa máy đo cmm

Vận chuyển giao hàng toàn quốc

Phương thức thanh toán linh hoạt

Gọi ngay 0974.692.294 để mua và đặt hàng nhanh chóng

Mô tả sản phẩm

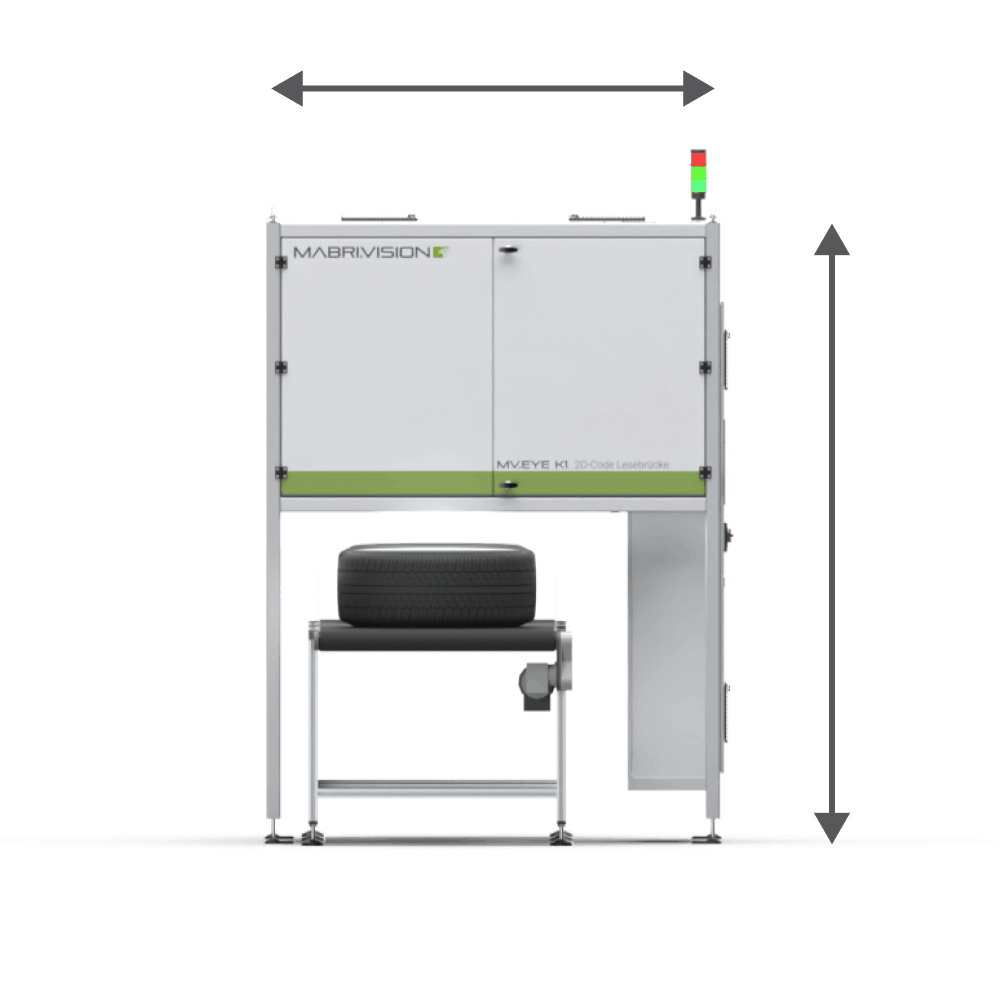

Scalable reading bridges.

The MABRI.VISION reading bridges enable the reliable detection of various features such as presence, position, soiling and defects as well as the reading of 2D codes such as data matrix and QR codes. Our high-performance optics in combination with a fast focus process recognize even low-contrast inspection features and codes. Thanks to its modular structure, the reading bridge can be efficiently adapted to the needs of your inspection. In this way, we guarantee both your flexibility and a reading bridge that optimally meets your special requirements.

Robust.

The system frame is specially manufactured for demanding production environments. For this we rely on a robust steel construction.

Scalable.

Thanks to its modular structure, the reading bridge can be adapted to your requirements in terms of both inspection features and quantities.

High-speed focus.

The reading bridge can be integrated into your production process at up to 1 m / s and delivers high-resolution results.

Specifications.


Tire sizes	500 mm - 900 mm
Tire diameter	115 mm - 375 mm
max.code size	(20x20) mm²
Interface	Keyence, GigE Vision, Cameralink, USB 3.0, Coax Express
Platforms	PC (Windows); Keyence
Weight	from 450 kg
power supply	230 V
