With the MV.EYE i2 WT inspection system, MABRI.VISION offers an inline-capable vision solution for seamless quality inspections in your production line. The inspection system enables contactless inspections of 2D and 3D component features and can be seamlessly integrated into the system environment using common industrial interfaces. Special properties of the inspection system are the high speed of the inspection processes, which enables inspections within the production cycle, as well as the modular system structure.

Contactless 100% production control in the production cycle

With the MV.EYE i2 WT inspection system, MABRI.VISION offers an inline-capable vision solution for seamless quality inspection in your production line. The inspection system enables contactless inspections of 2D and 3D component features and can be seamlessly integrated into the system environment using common industrial interfaces. Special properties of the inspection system are the high speed of the inspection processes, which enables inspections in the production cycle, as well as the modular system structure. When designing the inspection system, the MABRI.VISION experts rely on the latest technologies. A 100% inspection of your components is implemented through the combination of a 3D surface inspection, a large-area telecentric 2D inspection and a 2D & 3D inspection with an optical micrometer. The special feature of the combination of different inspection sensors is that the inspections are not only viewed independently of one another. The transfer to a common coordinate system enables high-precision results to be delivered. Replace your CMM inspection processes with the MV.EYE i2 WT inspection system and achieve a significant acceleration of your quality assurance. You benefit from an inspection system that supports your production through automation and extensive evaluation options.

The inspection system for automated production processes

The MV.EYE i2 WT inspection system is designed for fast and optical inline inspections in time. With high-speed inspections and the use of parallelization mechanisms, the system supports your production with an efficient inspection process.

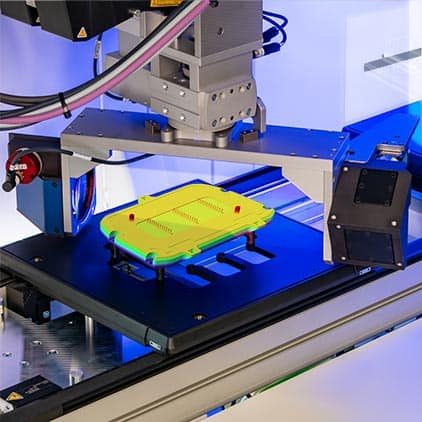

Combination of 2D & 3D inspection methods

In order to map the required inspection protocols of our customers, we combine different sensors in the inspection system. The combination of laser triangulation and optical micrometer for 3D feature recognition and large-area telecentric vision systems with cameras for 2D feature recognition are often used.

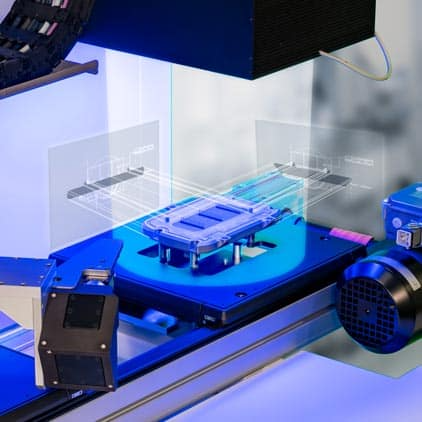

Feature fusion from 3 measuring stations

MABRI.VISION not only uses different sensors and inspection methods in the MV.EYE i2 WT inspection system to inspect the features of your components, but also combines the inspection data received and calculates the coordinate systems for optimal inspection results.

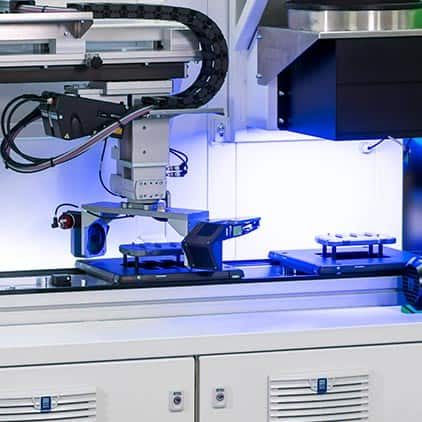

Permanently precise results

We supply calibration defaults as standard to meet the ISO 10012 norm with traceability to national calibration standards. All of our calibration standards come from DAkkS certified test laboratories with a corresponding calibration certificate. The MABRI.VISION software supports you with the regular inspection of the measuring system as part of inspection equipment monitoring. Expert knowledge is not required to perform the inspection.

Production processes in the clean room

The MV.EYE i2 WT inspection system is suitable for use in clean rooms in various industries, such as medical technology or pharmaceutical production. Our software is designed for connection to ERP systems. The inspection system can be equipped with an enclosure and a clean room filter and can be integrated into your production chain through common interfaces.

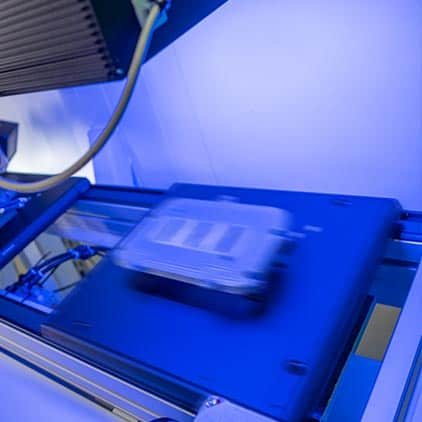

Cycle time-neutral high-speed inspection

A particularly high inspection cycle can be achieved through the use of goods carrier systems. With the MV.EYE i2 WT inspection system, you can carry out seamless inspections with a production cycle of less than 5 seconds. With a 24/7 utilization of your production, more than 5 million parts pass through the inspection system every year.
