High-precision 3D surface inspection system MV.EYE CR1

Danh mục:

Thiết bị đo tiên tiến

Từ khóa:

3d vina , hiệu chuẩn , hiệu chuẩn thiết bị , máy đo 2d , máy đo 3d , máy đo cmm , sửa máy đo 2d , sửa máy đo 3d , sửa máy đo cmm

Vận chuyển giao hàng toàn quốc

Phương thức thanh toán linh hoạt

Gọi ngay 0974.692.294 để mua và đặt hàng nhanh chóng

Mô tả sản phẩm

The MV.EYE CR1 inspection system enables the surfaces of products and components to be scanned quickly and with great precision using a 3D chromatic confocal line sensor. With 192 measuring points in a line and a measuring frequency of up to 6,000 Hz, even larger inspection areas with a very high point density can be scanned quickly. Inspection processes that take up to several hours with classic confocal point sensors can be implemented in minutes with the new MV.EYE CR1 inspection system.

3D surface inspection with 20nm resolution

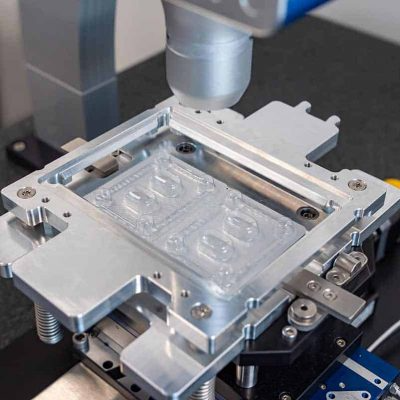

The fields of application range from the surface inspection and shape inspection of wafers, the defect inspection and roughness inspection on metal parts or shape inspection of precise injection molded components to the gap measurement in assembly processes of premium products. If the z-measuring range of the sensor is not sufficient, it can be expanded almost at will by moving the sensor vertically. The stand-alone inspection system with integrated controller and granite table is particularly suitable for use in test laboratories, but can also be operated directly in production. In the software, scanning processes can be automated and saved in recipes. If a connection to an automated process is planned, this can be implemented via common industrial interfaces. The MV.EYE CR1 inspection system creates reports for quality assurance through a direct connection to the MountainsMap evaluation software from Digital Surf.

The inspection system for automated production processes

Previous inspection processes with point sensors can be reduced from hours to minutes with the new MV.EYE CR1 platform. The generated 3D surface data achieve a resolution of 20nm in z. Thanks to an intelligent and modular combination of different high-performance optics, a wide range of tests can be carried out, making the test system suitable as a reliable complete solution in various areas of application.

Inspect large areas quickly

With 192 measuring points in a line and a measuring frequency of up to 6,000 Hz, even larger inspection areas with a very high point density can be scanned quickly. The portal system scans 200 x 200 mm² as standard and can be expanded as required.

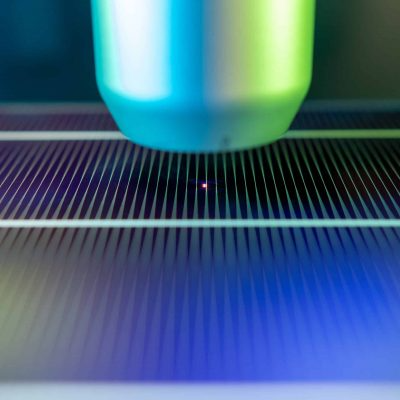

chromatic line sensor

A chromatic confocal line sensor behaves in the measuring principle like a classic confocal point sensor. Thanks to the line layout, 192 measuring points are recorded simultaneously, which enables very high measuring speeds.

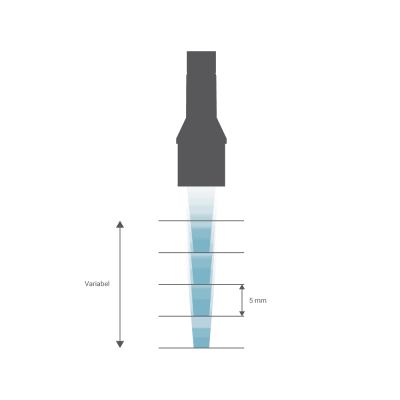

extreme Z-measuring range

The Z measuring range of the MV.EYE CR1 inspection system ranges from 500 µm to 3mm, depending on the measuring head, and can also be enlarged by flexible scaling of the Z axis and adapted to your inspection requirements.

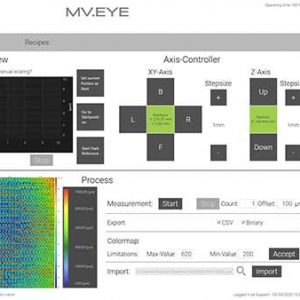

Automated processes

The stand-alone inspection system with integrated controller and granite table is particularly suitable for use in test laboratories, but can also be operated directly in production. In the software, scanning processes can be automated and saved in recipes

Connection to Mountains Map

The MV.EYE CR1 inspection system creates reports for quality assurance through a direct connection to the MountainsMap evaluation software from Digital Surf. The evaluation options range from geometric inspections to roughness measurements.
