Positioning Systems For VK-X Microscopes

Danh mục:

Peak

Từ khóa:

3d vina , hiệu chuẩn , hiệu chuẩn thiết bị , máy đo 2d , máy đo 3d , máy đo cmm , sửa máy đo 2d , sửa máy đo 3d , sửa máy đo cmm

Vận chuyển giao hàng toàn quốc

Phương thức thanh toán linh hoạt

Gọi ngay 0974.692.294 để mua và đặt hàng nhanh chóng

Mô tả sản phẩm

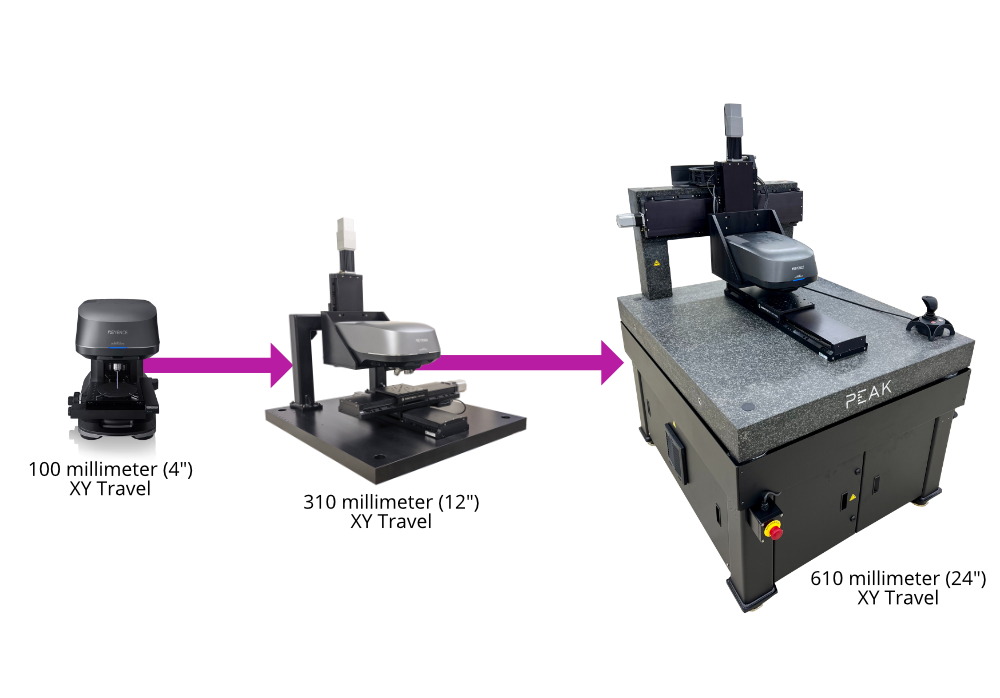

Measure More

These motorized stages increase the working volume and payload capacity of the Keyence VK-X laser microscope. They are ideal for microscope users that need to image over larger surfaces or bigger trays of smaller parts.

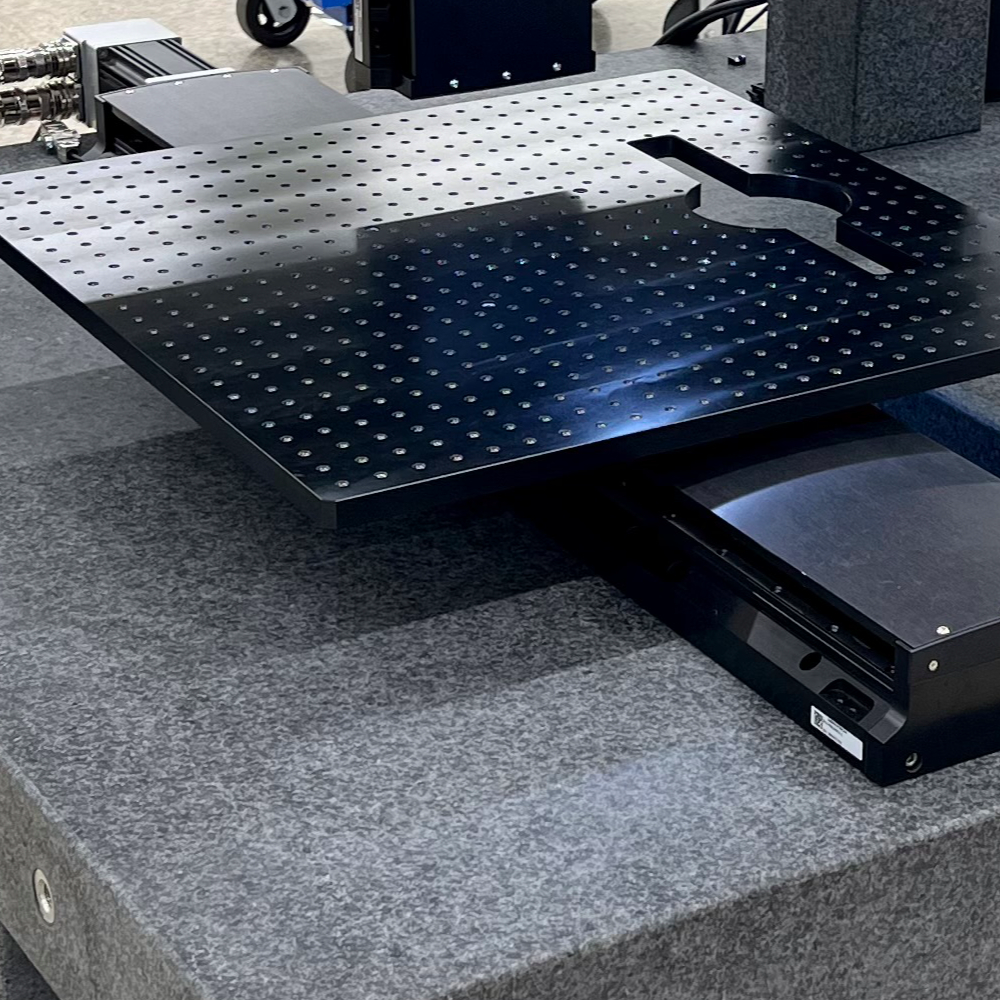

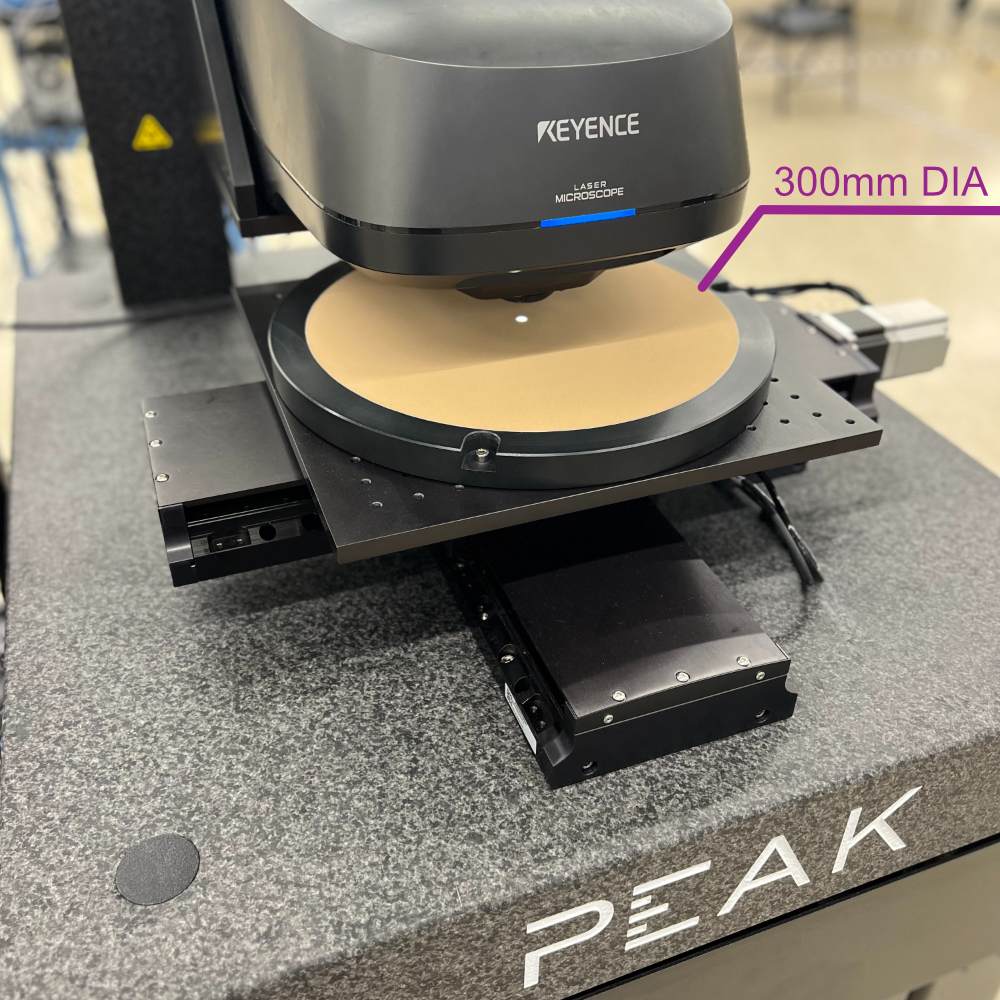

Motorized Stages And Automation

These stages are designed and built to be easily integrated with the Keyence VK-X microscope. The microscope head mounts directly to our product and setup is streamlined. We offer installation and training services to make it even easier.

Run the stages natively from standard Keyence software (VK Viewer)
Add Peak software to get even more automation features
Quick ship and custom options are available

Vibration Isolation Systems

We have extensive experience controlling floor vibrations of all levels. We will help you maintain the performance of your microscope regardless of your environment.

Automation Software for VK Microscopes

This product extends the functionalities of the off-the-shelf Keyence VK Viewer software. This product combines programming libraries provided with the Keyence VK-X alongside a programmable motion controller from Aerotech.

Further automate the out-of-the-box Keyence microscope and software
Uses an advanced motion controller to enhance machine programmability
Most useful for customers looking to reduce labor required to run the tool

Choose the Features that Solve Your Application

Feature	Keyence Software (VK Viewer)	Additional Software (XpansionUI)
Standard Autofocus, Mode Adjustment, and Lighting Controls	YES	YES
Create Navigation Images (Map View)	YES	YES
Stitching (Combining Individual Images)	YES	YES
Teaching (Recipe Programming)	YES	YES
Teaching Extended Z Stage and/or Rotational Stage Positions		YES
Extended Autofocus Range		YES
Lens Collision Prevention		YES
Fiducial Alignment Using Precision Crosshairs and/or Rotary Stages		YES
Programmable Retraction Moves and Safe Turret Rotation		YES
Custom Programming (Scripting, Libraries, API, etc...)		YES
