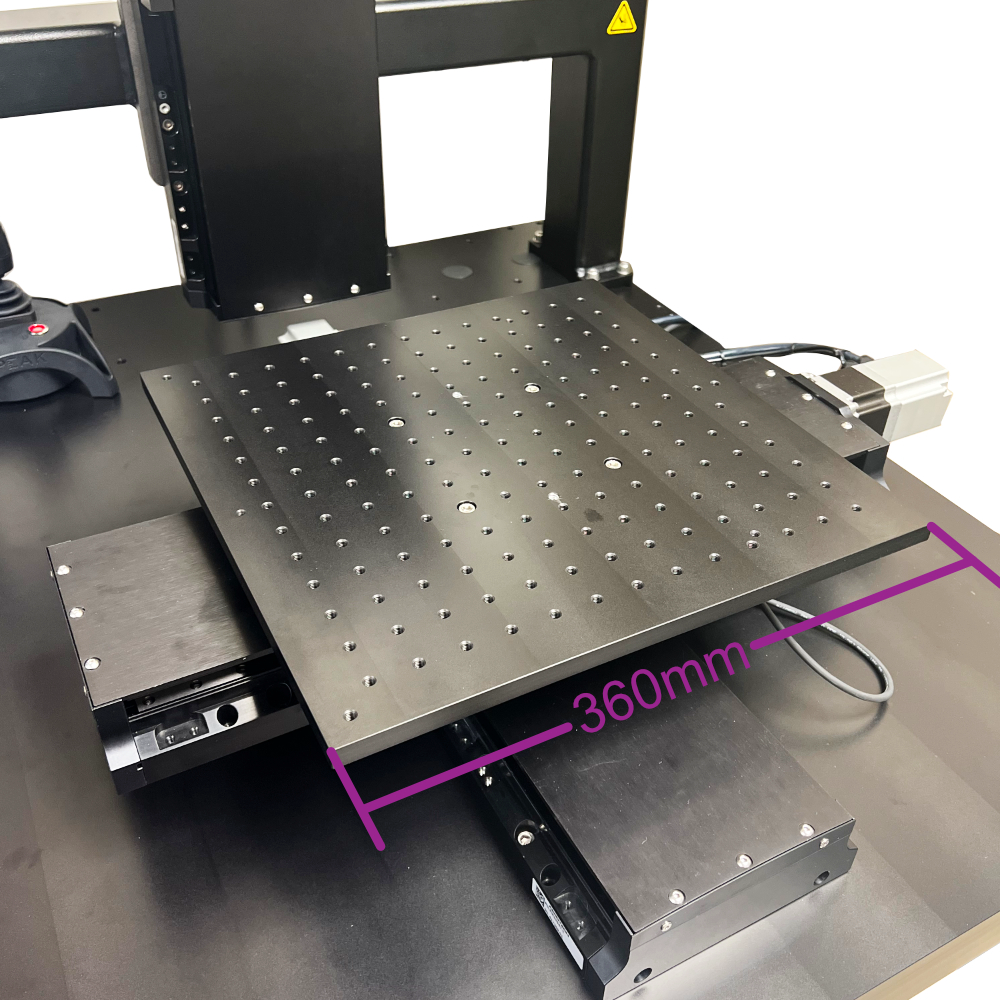

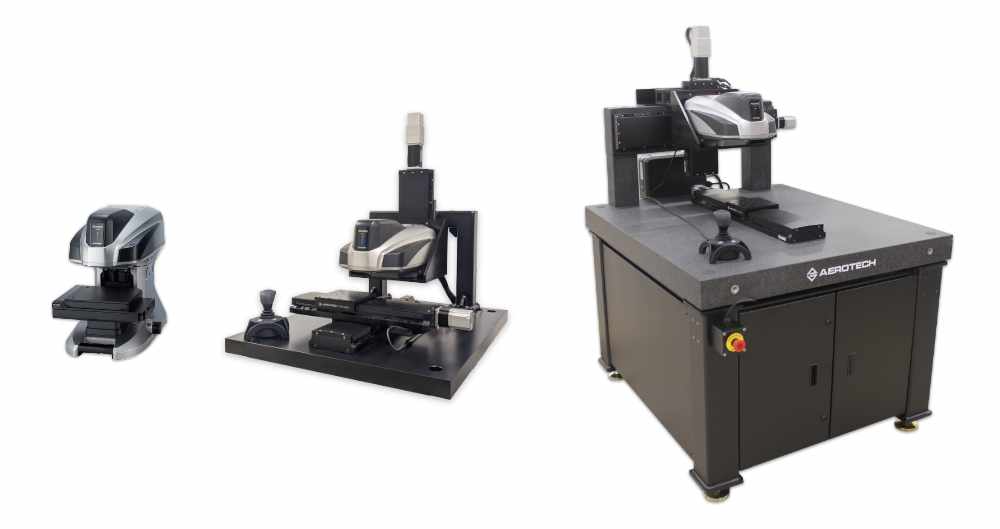

These stages are ideal candidates to increase the travel and payload capacity of your microscope and optical profiling systems. The platforms quickly adapt Keyence VR measurement heads to enable larger part measurement. A variety of accessories are available to meet the needs of customers in environments spanning from R&D to production.

Requirements for installation

The VR measurement head can be self-mounted on the positioning system. Consult us to determine the items needed from Keyence to make the hardware plug-and-play.

Mount the VR unit with bolts that come from Peak Metrology
Run the cables to the Keyence controllers
Follow a guide on how to update the software stage parameters

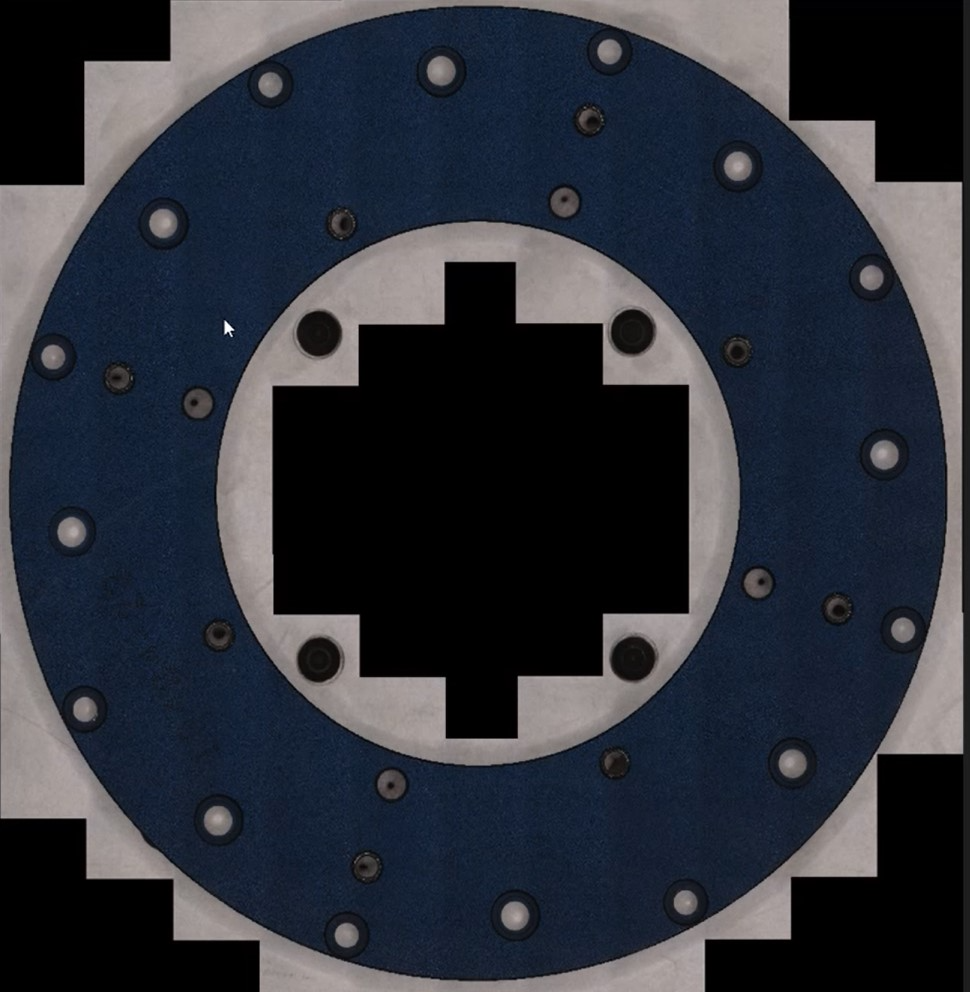

Large area stitching

Stitch up to 320 individual images, or just over a 300mm x 300mm area using these larger travel stages.

See our article covering resolution vs measurement area coverage to verify your application’s requirements against our larger stage offering.

Do you need a part holding surface?

It is important to hold the surface being imaged stable as the XY stages move. Our customers look to us for their part holding needs. We supply standard designs and custom manufactured chucks for a variety of part sizes.
