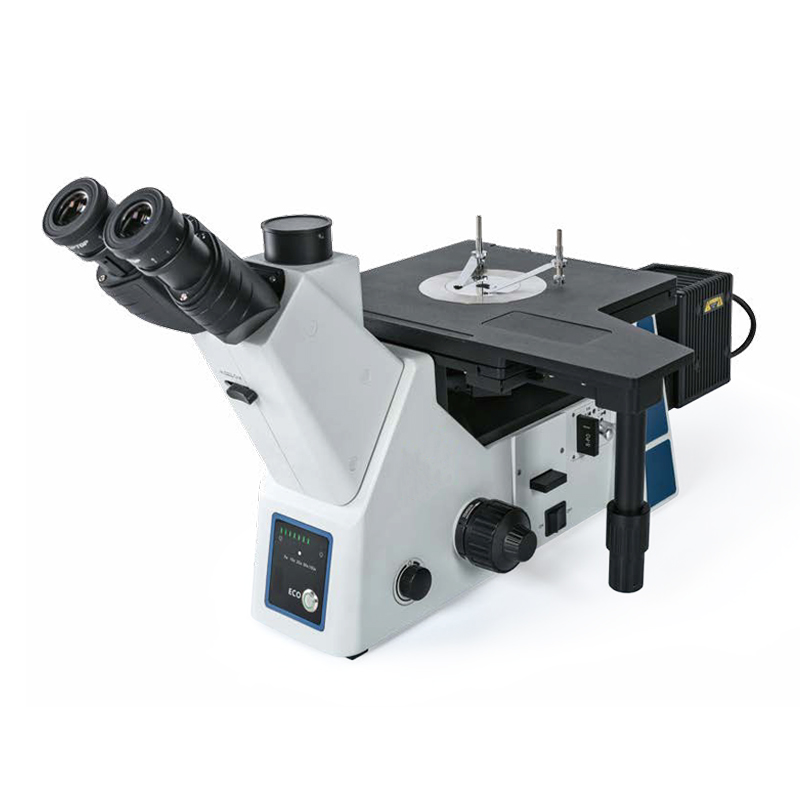

Inverted Metallurgical Microscope IMS-340

Danh mục:

Kính hiển vi các loại

Từ khóa:

3d vina , hiệu chuẩn , hiệu chuẩn thiết bị , Inverted Metallurgical Microscope IMS-340 , kính hiển vi , máy đo 2d , máy đo 3d , máy đo cmm , sinowon , sửa máy đo 2d , sửa máy đo 3d , sửa máy đo cmm

Vận chuyển giao hàng toàn quốc

Phương thức thanh toán linh hoạt

Gọi ngay 0974.692.294 để mua và đặt hàng nhanh chóng

Mô tả sản phẩm

Product Feature

◆Comfortable and simple operation Low position operating knobs 360 degree rotatable viewing head, according with ergonomical design, reduce the fatigue from long-time use. ◆Stable frame with outstanding design Metal casting frame with corrosion and wear resistance technology, ensures a solid and durable microscope.Built-in magnet for hexagonal wrench keeping, small designs are the most practical. ◆Front magnification display With built-in sensor in nosepiece, the objective magnification on using is visible from the front plate. ◆Intelligent ECO system With environmental and economic ECO infrared sensing system, the microscope is preset to be shutdown when there is no operator within limited time.

Specification

Product Name	Inverted Metallurgical Microscope
Model	IMS-340
Code#	431-155
Optical system	Infinity color correct optical system
Eyepice	High eye point wide field plan eyepiece PL10X22mm, with adjustable diopter, reticle attachable High eye point wide field plan eyepiece PL10X22mm, with adjustable diopter, reticle attachable
Objectives	Long working distance plan achromatic metallurgical objectives 5X, 10X, 20X, 50X, 100X Long working distance bright & dark field plan achromatic metallurgical objectives 5X, 10X, 20X, 50X, 100X
Viewing Head	45 degree inclined trinocular viewing head, 360 degree rotatable; interpupillary distance 50-75mm, binocular:trinocular=100:0 or 0:100
Nosepiece	Inward quintuple bright field nosepiece (DIC slot), with built-in magnification sensor Inward quintuple bright & dark field nosepiece (DIC slot), withbuilt-in magnification sensor
Frame	Reflected frame low-position coaxial focusing system, coarse range 9mm (up 6.5mm, down 2.5mm), fine precision 0.002mm with upper limit and tension adjustment; with switch for bright and dark field; with variable field diaphragm and aperture. Diaphragm, both center adjustable; with slots for filters and polarizing kit; with light intensity indicator; with infrared induction; with magnification display.
Mechanical Stage	Three layers rackless stage, size: 240mm (W) X 250mm (L), moving range: 50X 50mm; low-position handle knob
Illuminator	External power adapter, input 100V-240V, output 15V13.4A, lightintensity adjustable
Camera adapter	0.35X, 0.5X, 0.65X, 1X focusing C-mount
Others	Polarizer, fixed analyzer, 360 degree rotatable analyzer, DIC attachment, filters, high precision micrometer
