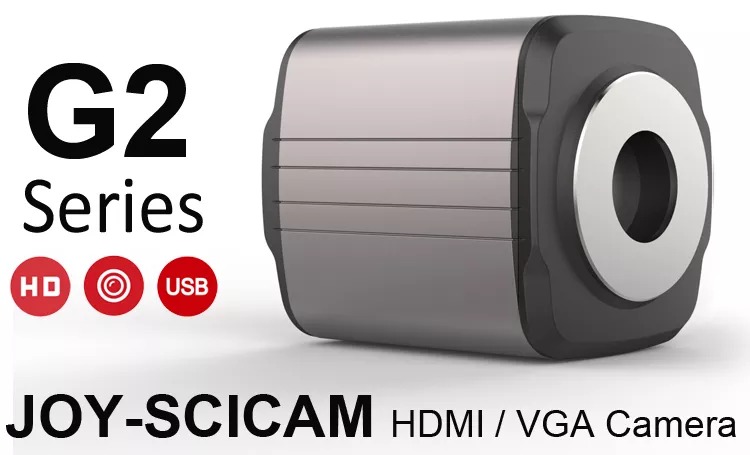

Camera kính hiển vi / Multi-Purpose Industrial Metrology Cameras for Microscopy Cameras for Machine Vision

Danh mục:

Từ khóa:

3d vina , Camera kính hiển vi , hiệu chuẩn , hiệu chuẩn thiết bị , Industrial Metrology Camera , kính hiển vi điện tử , máy đo 2d , máy đo 3d , máy đo cmm , sửa máy đo 2d , sửa máy đo 3d , sửa máy đo cmm

Vận chuyển giao hàng toàn quốc

Phương thức thanh toán linh hoạt

Gọi ngay 0974.692.294 để mua và đặt hàng nhanh chóng

Mô tả sản phẩm

Overview

Quick Details

Place of Origin:: Fujian, China

Brand Name:: Joyusing

Model Number:: Joy-SciCam G2

Theory:: Biological Microscope

Drawtube:: Monocular

Sensor:: CMOS 1/2.86"

Effective Pixels:: 2.0 MP

Resolution:: 1920*1080P

Frame rate::: 30 Fps

Snap:: High Speed SD Card (32G)

Power Supply:: DC 12V/1A

Style:: Box Camera

Special Features:: Waterproof / Weatherproof

Output:: DC-IN, HDMI, USB2.0, SD

Optical interface:: Standard C Port

Packaging & Delivery

Selling Units:: Single item

Single package size:: 28.5X17.5X10 cm

Single gross weight:: 1.0 kg

Lead Time :

Quantity(Piece)	1 - 10	11 - 500	501 - 3000	>3000
Est. Time(days)	3	30	60	To be negotiated

Product Description

JoyUsing keeps on improving self in the technology, and expecting to bring up more values to customers. Your satisfaction is our Pride.

Key Features

> After years of polishing and precipitation in image process field, G2 Industrial Camera has made a leap of image quality, color reduction and response time.

> 1080 resolution matches mainstream HD screen in market.

> Separate design of VGA/HDMI port brings a highly integrated compact structure and low failure rate.

> Connected with PC via USB port or connected with mouse for PC-free operating.

> Maximum 8 cross baseline with custom color, line width, movement, position and visibility.

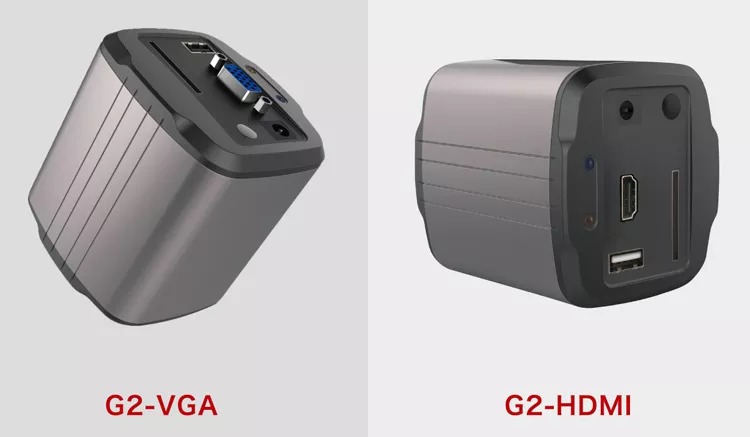

HDMI/VGA Pports Output Separate design of VGA/HDMI port brings a highly integrated compact structure and low failure rate. Connected with PC via USB port or connected with mouse for PC-free operating.

With Linux Embedded System G2 Industrial Camera has made a leap of image quality, color reduction and response time.1080 resolution matches mainstream HD screen in market.

Associated Devices Helps a lot in teaching demonstration, experimental recording and other industrial detection fields SMT PCB detection | Warehouse incoming materials detection Biology experiments demonstration | Medical anatomy presentation

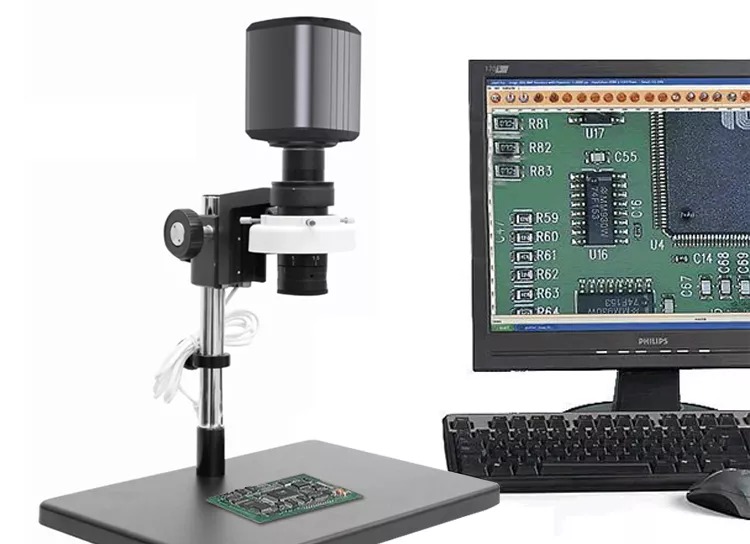

Applications > Biology Experiments Demonstration > SMT PCB Detection

> Medical Anatomy Presentation > Warehouse Incoming Materials Detection

You Can Download More Information for JOYUSING Products.

Hardware Specification
Product Name	VGA Industrial Camera	HDMI Industrial Camera
Sensor	1/2.86" CMOS
Image processor	Built-in image processor
Effective Pixels	2MP
Resolution	1920*1080
Frame Rate	30fps@1920*1080
Snap	High Speed SD Card (32G)
Video Record	30fps @SD Card 30fps @PC
Output	DC-IN,HDMI,USB2.0,SD card	DC-IN,VGA,USB2.0,SD card
Menue	Power switch
Indicator light	Power switch indicator (red/blue) Device boot indicator (green)
Power	DC-12V/1A
Optical interface	Standard C port

Software Specification
Image adjustment	Brightness, contrast, saturation, white balance, black and white switching, HDR wide dynamicsExposure, flicker suppression, sharpness, Gamma, Cb/Cr gain adjustment
UI	Full mouse humanization operation
Storage function	Timely Shooting, Video Recoding, Photo preview,Dynamic Comparison SD Card Formatting
Camera function	Digital Zoom,OSD,Freeze,Horizontal/Vertical Mirroring
Cross cursor	8 & 9 sets of crosshairs, you can define the color, line thickness, displacement movement and hiding
