Bộ đồ gá cho máy đo CMM - 108 miếng của hãng Unimetro

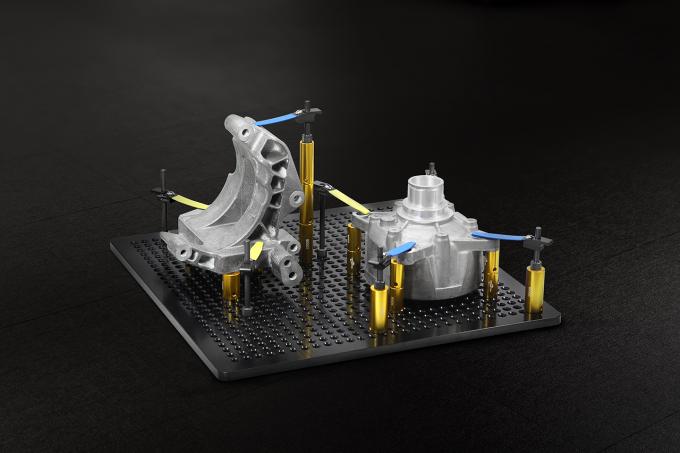

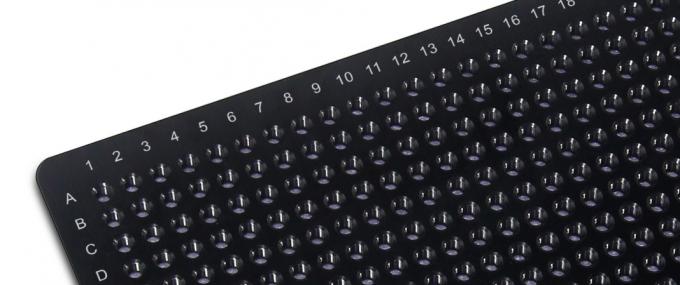

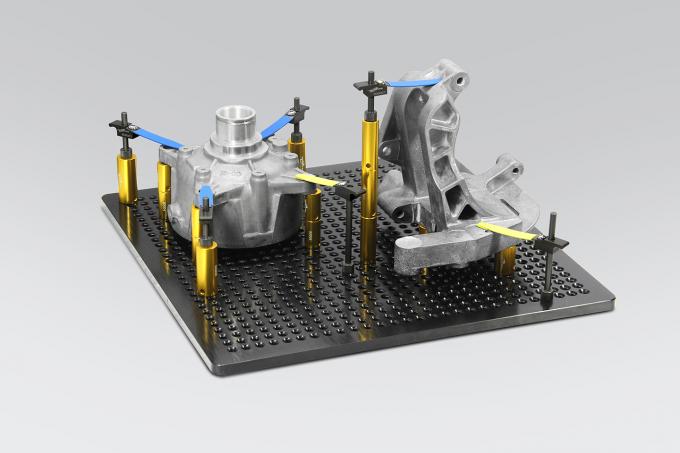

  108 Pieces CMM Fixture Kits Aluminum With Coding System Programmable   FlexFix series coordinates measuring machine fixture   The Flexfix series coordinates measuring machine fixtures is capable to increase the efficiency, repeatability and accuracy of the workpiece measuring in the coordinates measuring machine. The fast combination and coding system, ensures the flexibility of the fixtures. No matter what the size, shape or materials of the workpieces, the FlexFix series will offer complete fixing solution.     Workpiece fixing solution   The FlexFix series coordinates measuring machine fixture is applied in aviation, automobile, electronics, or medical industries. We are offering complete solution, to satisfy all workpiece fixing requirement     The series is offering M6 or M8 screws for option, together with the fast combination fixture kits. All the components are able to combined easily and fast, no need for extra tools, largely increase the fixing efficiency of measuring.   The base board is laser printed with codes, users are able to use these codes for standard programming and recording, increase the repeatability of the fixing, eliminating the measuring error caused by the fixing offset. Increase the accuracy and repeatability of the measuring result.     Advanced machining and surface processing   The FlexFix series coordinates fixtures are using CNC machining technology, base boards are using hard anodizing for the surface processing, flatness is under 0.05mm(Within 500mm). The fixture kits components are using color anodizing for the surface, high rigidity and hardness, avoiding the scratch during the operation process.   All the tension press use the high accuracy spring steel materials, stable recovery, ensures the stability of the pressing, increase the repeatability of the fixing.     Fixture Kits Components Listing

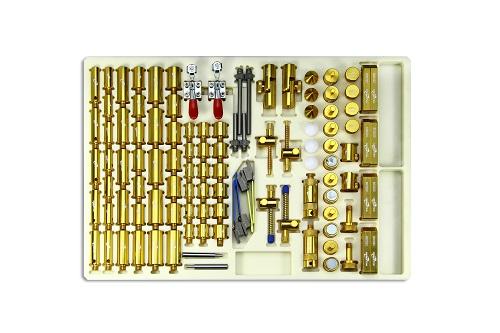

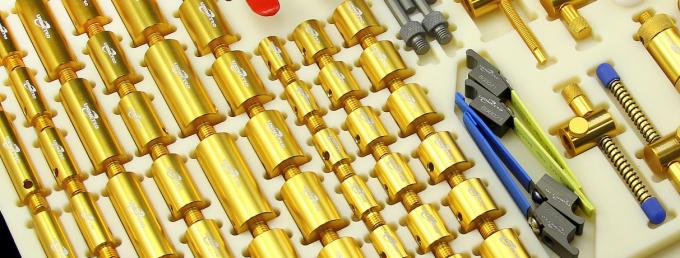

Item	Serial No.	Qty.
Press block	800021	4
Short tension press supporter	800022	2
Long tension press supporter	800023	2
Tension supporter	800010	2
Screw supporter	800011	2
Height adjustable supporter	800013	2
Flexible supporting block	800020	8
Magnetic supporter	800014	4
Aluminum cone	800024	3
Nylon cone	800025	3
Base board fixing screws	800017	2
Components fixing screws	800019	4
Flat supporter	800015	2
Positive adapter	800016	6
Multi-direction adapter	800012	2
Small clip	800022	2
Supporting rod 12*20mm	80007	6
Supporting rod 12*30mm	80002	6
Supporting rod 12*50mm	80001	6
Supporting rod 16*20mm	80008	6
Supporting rod 16*30mm	80004	6
Supporting rod 16*50mm	80003	6
Supporting rod 20*20mm	80009	6
Supporting rod 20*30mm	80006	6
Supporting rod 20*50mm	80005	6
Auxiliary screw driver	800026	2
Free direction V type supporting rod	800018	2
Kits plate	800027	1
Packing suitcase
