Best in class industrial 3D+2D camera with a large FOV and working volume for wide range of applications.

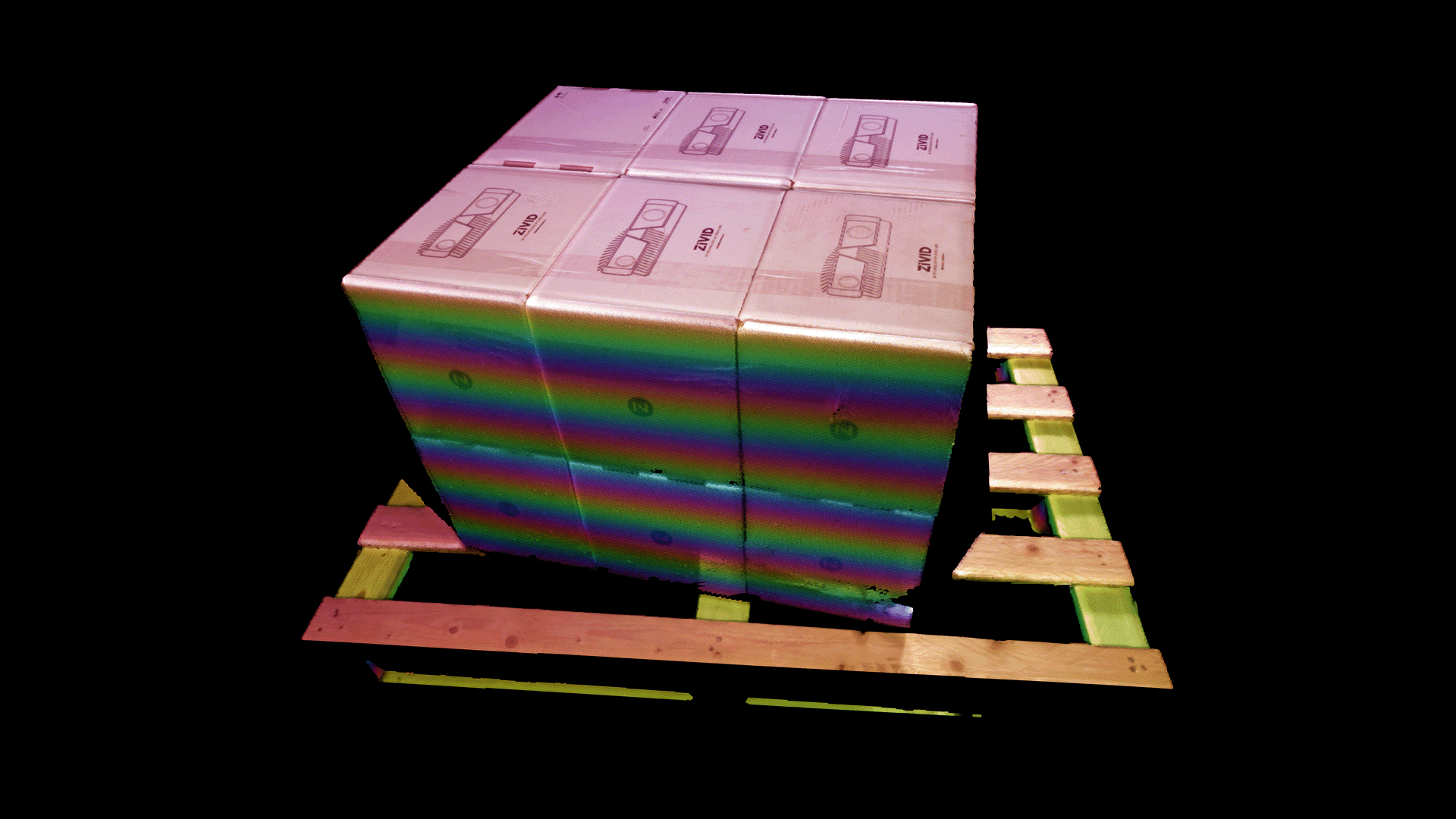

The Zivid 2+ generates all the data you need to run your AI models and machine vision algorithms. It produces 3D point clouds, 2D images, depth maps, surface normals and SNR (signal-to-noise ratio) data in a single capture and delivers them in a coherent pixel-wise format - everything you need from a single device. With all the capabilities of a high-resolution industrial 2D camera, the Zivid 2+ can be used for detection, recognition, segmentation, and classification tasks. This unique combination eliminates the need for intrinsic and extrinsic calibration between 3D and 2D cameras, reduces the number of hardware components, and simplifies your cell installation and maintenance. Acquiring all input data for your algorithm in one device increases developer productivity with a unified programming model and streamlined machine vision pipeline.

Zivid 2+ L110 can reliably capture the most challenging parts with exceptional accuracy and detail. Whether it's transparent objects, glossy packaging, or shiny reflective and dark objects, this camera excels in delivering the highest quality point clouds with true-to-reality representations of any object's size, orientation and position, all at once. Maximize your chance of success in every pick with reliable object recognition, maximum pose estimation accuracy, and minimal false collision checks. Zivid 2+ L110 is the camera for applications that require precision grasping and manipulation.

Unleash peak performance in robotic automation with the Zivid 2+ L110 camera. With an unmatched quality-to-speed performance, it captures the most stunning point clouds in as little as 100ms - empowering your robot solution to operate seamlessly for maximum effective throughput.

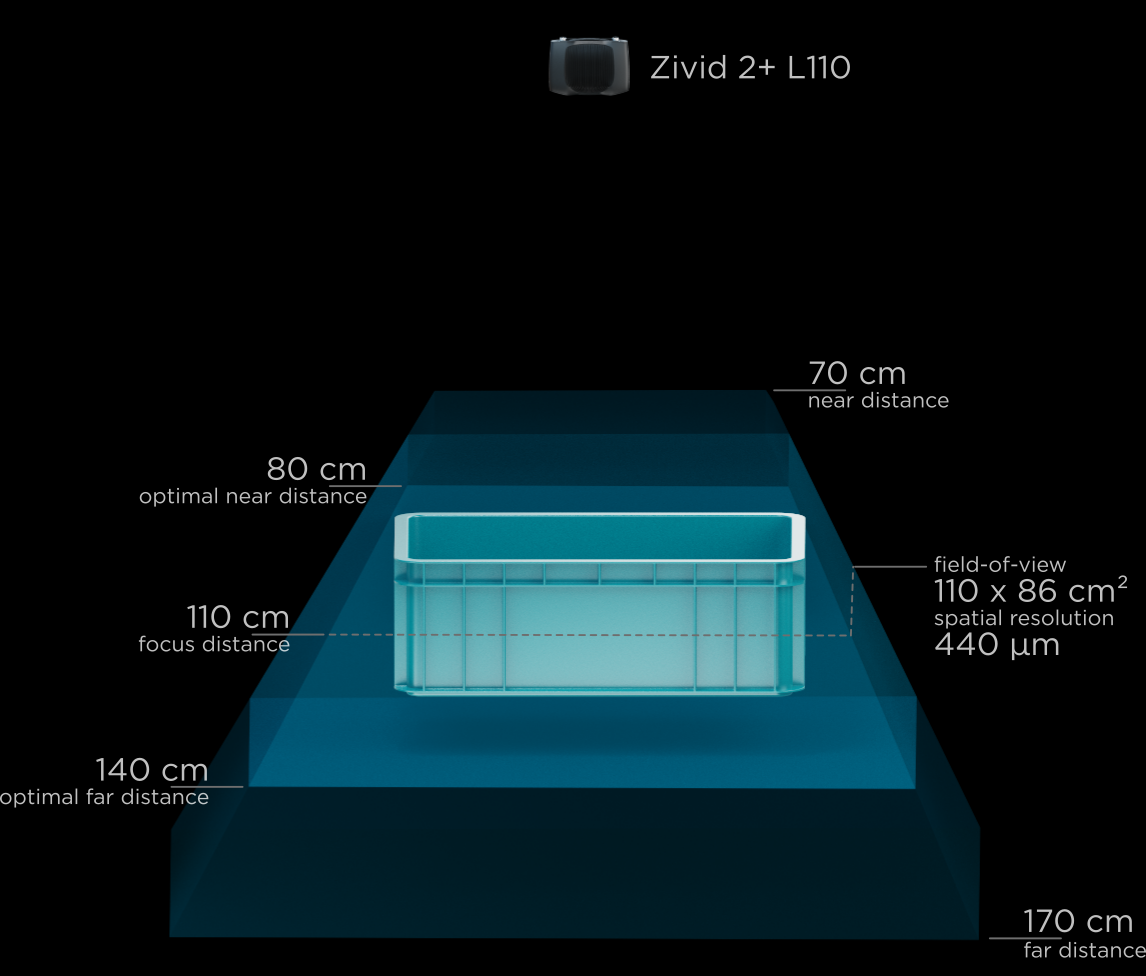

Optimized for being mounted onto the robot arm, the Zivid 2+ L110 offers a large scanning volume with dense and accurate 3D point clouds - unveiling pallets, large bins or even multiple totes in a single shot. The focus distance of 110 cm has been carefully selected to match the clearance required for long grippers and end effectors, allowing for accurate and efficient bin-picking and depalletizing tasks with the Zivid 2+ L110 mounted on the robot arm. Combined with its short baseline this 3D camera overcomes blind spots, optical singularities, occlusion, and point cloud artifacts, allowing you to empty the bin reliably and effectively.

The Zivid 2+ is a small, lightweight and fast 3D camera engineered for on-arm robot applications to excel under the harshest working conditions. Built with a dust and waterproof lightweight magnesium housing for maximized robot maneuverability and payload efficiency. Zivid 2+ is made with ruggedized all-glass optics to stay accurate while enduring high accelerations, and is characterized for 15G shock and 5G vibrations. With innovative thermal calibration, cooling and a robust 10 gigabit ethernet connectivity, every 3D camera from Zivid is calibrated and tested for full performance across an operating temperature from 0 - 40°C. Zivid 2+ is made to deliver consistent performance and reliable operation in unpredictable industrial environments - making it ready for demanding and large-scale industrial deployments.
