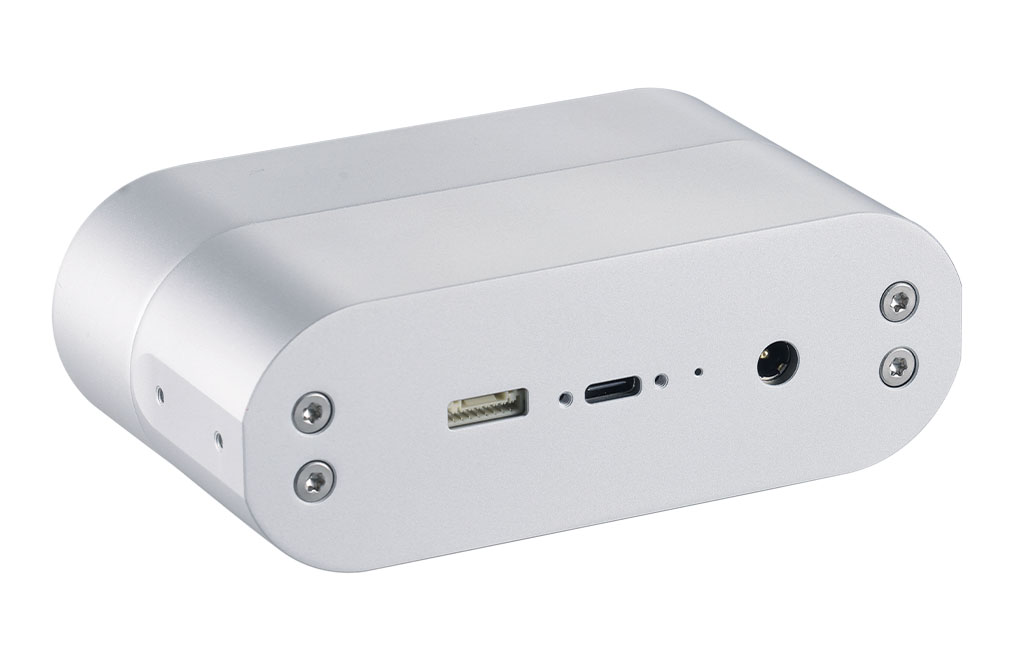

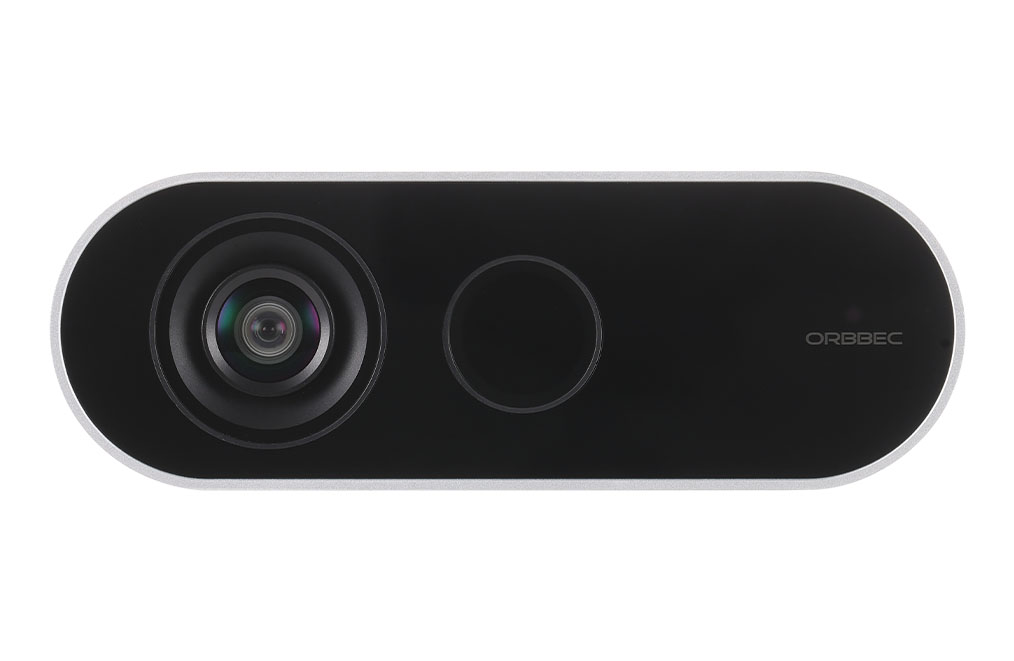

TOF Camera Femto Bolt

TOF Camera Femto Bolt Specifications

Camera Specifications	Physical Parameters
Depth Technology: Time of flight	Data connection: USB 3.2 Type-C, Gen 1
Wavelength: 850nm	Power Input: USB Type-C/DC 12/2A
Depth Range: *0.25-5.46m (depemding on depth mode)	Trigger: Supported
Depth Resolution/FPS: Up to 1024X1024@15fps(WFOV), 640X576@30fps(NFOV)	Power Consumption: 4.35W Average
Depth FOV: H 120° V 120° (WFOV), H 75° V 65° (NFOV)	Operating Environment: 10°C-25°C; Indoor/Semi-Outdoor; 8-90%RH (non-condensing)
RGB Resolution/FPS: Up to 3840X02160@30fps	SDK Support: Orbbec SDK
RGB FOV: H 80°×V 51°	Data Output: Point Cloud, Depth Map, IR&RBG
Processing: Host computer	Dimensions (W*H*D): *115mm×40mm×65mm
IMU: Supported	Weight: 335g
*2D and 3D files avaible for download at Github	Installation: Bottom: ¼-20UNC Side: 4×M2.5

TOF Camera Femto Bolt Applications

Robotics: Femto Bolt advanced object detection and tracking algorithms in FemtoBolt provide more efficent and safer for workers. Depth sensor information in FemtoBolt to get more precise demensions for mechanical arms. Health: Femto Bolt use computer vision to track and monitor body's movements and overall form. Embeded well- trained human body skeleton algorithm with AI-driven insghts. Provided an improvement solution for elderly care, rehabilitation and fitness for next genneration healthcare industry. Media: Feam Bolt 1MP depth and 4K color information reconstruct the volumetric video for use in AR/XR; Depth and visual tracking capabilities form Femtobolt reshape the interactive experience for next media broadcasting. Dimension: Femto Bolt can provid accurate and precise measurements of package dimensions, improving logistics and shipping accuracy.
