FGS-VC Series – Motorized Test Stands for Force Gauges (Vertical Type)

By changing digital force gauges (push-pull gauges), loads ranging from 2 N to 2,500 N can be measured with this force gauge stand. The USB interface and specialized FGT-VC add-in software, which is available free of charge, allow the stand carriage moving distance and load data to be easily transferred to a computer and displayed as a graph.

Features

A wider range of loads

Loads ranging from 2 to 2,500 N (0.2-250 kg) can be measured. Various types of digital force gauges can be mounted.
Note: Digital force gauges are sold separately.

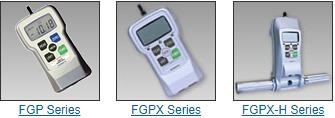

(Digital force gauges other than the FGP Series listed above can be mounted as well. However, please note that separate adapter plates are required to mount them.) Longer stroke

The mounted force gauge can be moved by up to 400 mm to perform various types of tests.

Wider speed range

The wide travel speed range (10-400 mm/min) allows the force gauge to respond to various test conditions.

Easy to use

Uses an LCD on the operation panel
Key switch layout for easy operation

For switching operation modes
For setting travel speed
For displaying distance and travel speed

Specifications

form		FGS-100VC	FGS-250VC
Measured load		1000N（100kgf）	2500N（250kgf）
Load capacity		1000N（100kgf）	2500N（250kgf）
Feed rate		10-400mm/min Operation panel, speed setting
stroke		400mm
Display Department		Dot matrix LCD 4 digits with sign
Express	Movement speed indication	10 ~ 400mm / min
	Movement distance indication	0.0～400.0mm
	Repeat count display	0 ～ 9999
action mode		MANU mode: Move to dog / JOG mode: Jog operation / SING mode: Move once between dogs CONT mode: Repeated move between dogs / PROG mode: Move 5 points
communication	USB	USB (for PC)
input	Overload input	Stop at FGPX(FGP) overload signal
Measurement table		150 × 200mm
Operating temperature limit		0 to 45°C (no condensation)
power supply		AC100V ± 10 ％
quality		About 63kg	About 65kg
accessories		Power supply AC socket for force gauge, FGXX (FGP) connection cable, USB cable
PC software		Free offer Download from Sympo HP
PC software		Sends load and distance data and displays a graph with trigger function (starts data acquisition after reaching the set load) Continuous data acquisition frequency can be set / with upper/lower limit judgment function
Other		Emergency stop switch
Corresponding force gauge		FGP-0.2～50,100	FGP-0.2～50,100
		FGPX-0.2～50,100	FGPX-0.2～50,100
		FGPX-0.2～50,100	FGPX-250H
