Máy đo 3d Micro Vu Vertex 420 cũ

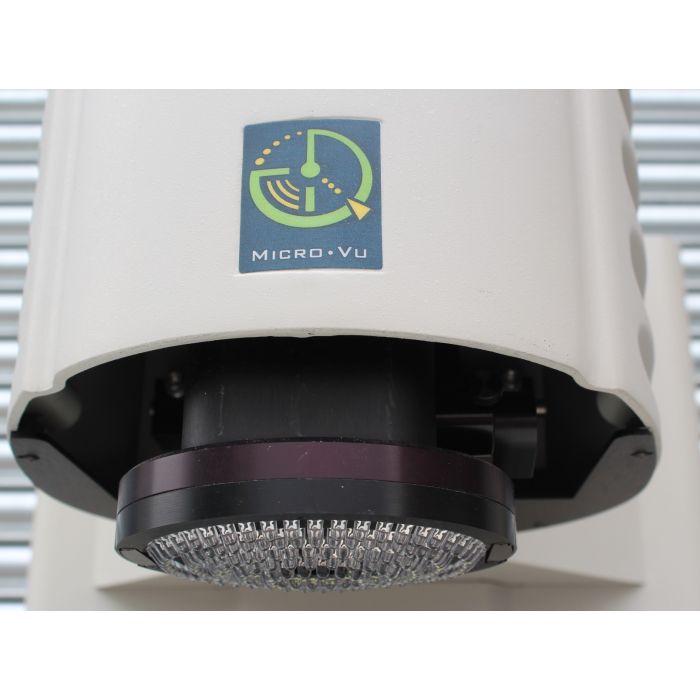

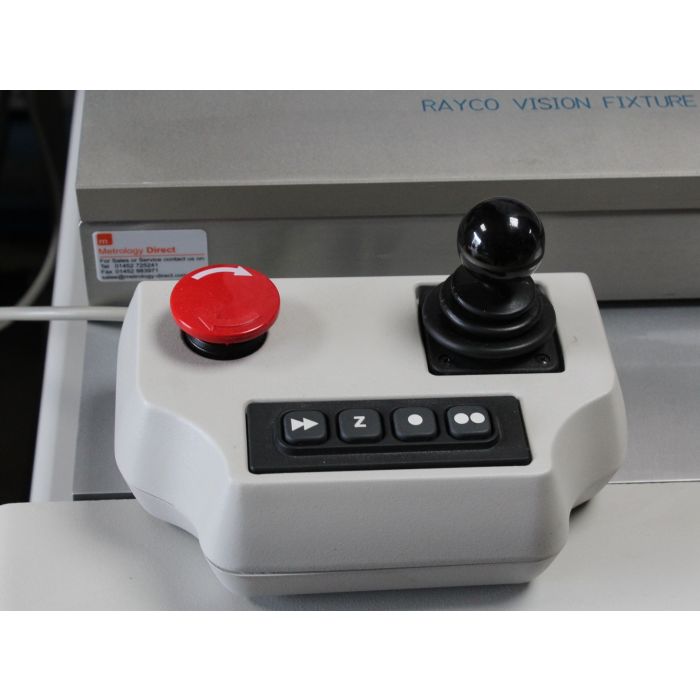

Micro-Vu Vertex 420 Precision Measuring System

Part# C2410124 Measurement speed: 1600 Measurement accuracy: measuring 1600 points, the maximum tolerance for statistical repeatability 3um, the minimum tolerance 1um Reverse engineering 4: 1 used for 3D measurement of surface area Specifications: USED MICRO Vu upto 200mm-1500mm size dimensions Measuring range stroke: X300 x Y300 x Z150mm X300 x Y300 x Z150 mm XY Axis accuracy: U2 = 2.6 + L / 1750µm, U2 = 2.6 + L / 1750 micron Z Axis precision: U1 = 3.0 + L / 150µm, U1 = 3.0 + L / 150 micron Resolution optical foot resolution: 0.4µm, display 0.1um 0.4 microns, 0.1 micron Velocity display movement speed: 500mm / s 500 mm / sec XY-Axis acceleration: 250mm / s2 250 mm / sec Z Axis acceleration: 100mm / s2 100 mm / sec 2 Stage material: Granite optic / magnification Optical lens / magnification range: 6.5: 1 Programmable zoom lens / 20x-250x 6.5: 20-250 times Environmental requirements: 20 ± 2 ° C temperature Humidity temperature: 20 ± 2 ° C Humidity: 30-80%. Applications of Micro-Vu systems These coordinate measuring systems are used to measure a wide variety of materials parts and assemblies. Manufacturers can use these systems to measure medium and large parts, but the system will accept most part sizes. The Micro-vu range is best used to inspect parts such as: Machine parts Injection moulds Plastic parts Printed circuit boards PCB masks Sheet metal O-rings Fitted with Raycofixture acrylic plate (30 x 30 cm, M6 threaded holes on 12mm centres), 9 port manifold, clamping kit and components (small element of damage to acrylic plate as per image, looks like a previous user may have overtightened one fixture) Complete with wheeled cabinet as per images
