FGS-HB Series – Manual Test Stands for Force Gauges (Vertical Type / Handle Operated)

By changing force gauges (push-pull gauges), loads ranging from 2 N to 2,500 N can be measured with this force gauge stand. One turn of the handle moves the carriage approximately 1.33 mm (FGS-100HB), thus measurement can be performed with minute movements. In addition, it is possible to output a signal when an overload is applied to the unit.

Features

A wider range of loads

Loads ranging from 2 N to 2,500 N (0.2-250 kg) can be measured. Various types of force gauges can be mounted.
Note: Force gauges are sold separately.

(Digital force gauges other than the FGP Series listed above can be mounted as well. However, please note that separate adapter plates are required to mount them.) Longer stroke

The mounted force gauge can be moved by up to 400 mm to perform various types of tests.

Handle operated for minute movement

FGS-100HB: Approx. 1.33 mm per turn of the handle
FGS-250HB: Approx. 0.55 mm per turn of the handle

Load capacity	1000 N (100 kg), 2500 N (250 kg)

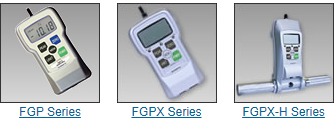

Supportable force gauges	FGP Series, FGPX Series, FGPX-H Series

Specifications

form	FGS-100HB	FGS-250HB
Measured load	1000N（100kgf）	2500N（250kgf）
Load capacity	1000N（100kgf）	2500N（250kgf）
stroke	400mm
One turn of the handle	About 1.33mm	About 0.55mm
quality	About 56kg
Measurement table	150 × 200mm
Corresponding force gauge	FGN-0.2～50 FGP-0.2～50,100 FGPX-0.2～50,100	FGN-0.2 ~ 50
		FGP-0.2～50,100
		FGPX-0.2～50,100
		FGPX-250H
