Mô tả sản phẩm

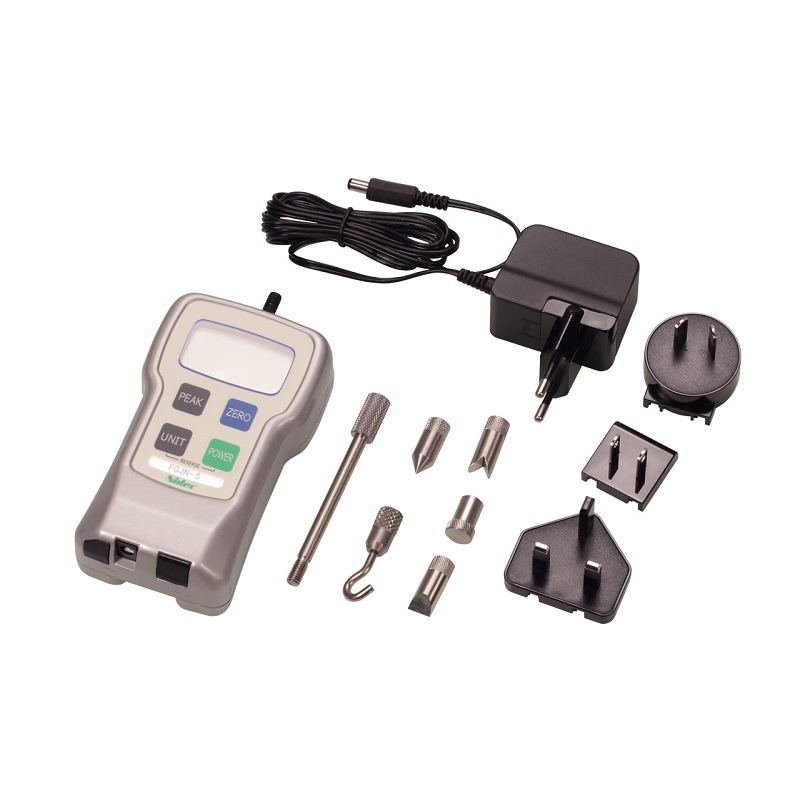

FGJN Series Economic Digital Force Gauges

An affordable series of digital force gauges (push-pull gauges) with capacities ranging from 20N to 500N, which are capable of simple measurement of pressing force, tensile force, peel force, etc. Provided with various useful functions including: a Reverse function, which turns the displayed numerical value and unit upside down with the press of a button, and a Unit Switching function, which can change the unit between “N” and “kg” with the press of a button. This series has acquired the CE mark, and is scheduled to be compliant with the RoHS directive in 2013.

Features

Improved measurement accuracy. Measures peak values at a high-speed rate of 1,000 times per second. For normal measurement it is possible to select frequencies up to 20 times per second. Display frequency: 1, 2, 3, 5, 10 and 20 times per second. Uses a reverse function that turns the displayed numerical value and unit upside down with the press of a button. Can change the unit between “N” and “kg” with the press of a button. Capable of measuring peak values.

Measuring range of the series		±20.00 N, ±50.00 N, ±200.0 N, ±500.0 N

Specifications

Type	FGJN-2	FGJN-5	FGJN-20	FGJN-50
Rated capacity (RC)	±20.00N (±2.000kg)	±50.00N (±5.000kg)	±200.0N (±20.00kg)	±500.0N (±50.00kg)
Displayable range	±20.00N ±2.000kg	±50.00N ±5.000kg	±200.0N ±20.00kg	±500.0N ±50.00kg
Decomposition energy	0.01N/0.001kg		0.1N/0.01kg
unit	N, kg (Heaven and earth reverse さ indicates possible)
Measurement method	1. Normal measurement 2. Positive peak measurement 3. Negative peak measurement
Cycle time	1 times/second, 2 times/second, 3 times/second, 5 times/second, 10 times/second, 20 times/second
time to calculate	1000 times/second
accuracy	±0.3% of rated capacity and ±1/2 digit (at 23℃)
Temperature influence	Zero: Canceled by tracking processing, Span: ±0.03%/LOAD/℃
Indicator	4-digit liquid crystal display, character height 12 mm, pulling load-display (upside down display possible)
	Various representations
	1″LO BAT” (low battery voltage)
	2″BAT” (charging)
	3 “OVR” (overload)
	4 “PEAK” (Peak hold mode)
Overload tolerance	200%/R.C.
Tracking function	Yes (ON/OFF switching possible)
power supply	Rechargeable (built-in nickel-metal hydride battery) and AC adapter (DC9V 200mA), can be measured during charging Usable time: about 8 hours after fully charged, charging time: up to 12 hours (automatically ends when fully charged)
Auto power off function	10 minutes (can be used continuously when using the AC adapter) or OFF
Temperature range	0〜40 ℃
External dimensions	Width 75 × thickness 38 × length 147mm
quality	About 450g (battery included)
accessories	●Measurement adapter (M6) ●Hanger ●AC adapter ●Carrying case
