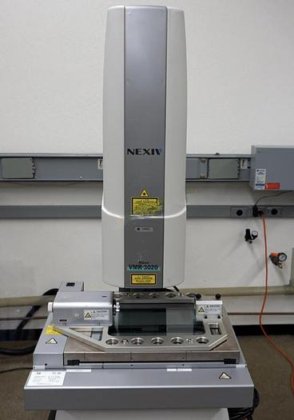

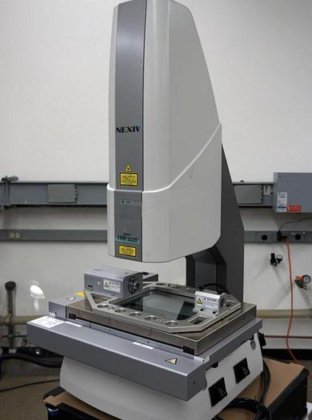

Máy đo 3d Nikon NEXIV VMR-3020 cũ - năm 2015

3D coordinate measuring sysem with Type 2 optical head sn 1302.1.64 Color camera Zoom range: 1-15X Total magnification: 36X to 540X Field of view (FOV) 4.67 x 3.5mm (36X) to 0.311 x 0.233mm (540X) laser autofocus and height measurement Stage XYZ: 300mm x 200mm x 150mm 5 step zoom magnification Minimum readout 0.1um max specimen height and weight 105mm/ 44.0lbs dual ring oblique LED illuminators through the lens (TTL)laser auto focus with 8 micron spot size 25mm working distance Telecentric 15:1 zoom optical system episcopic and diascopic illumination (reflected and transmitted light) Software: NEXIV VMR Version 6.30, 64bit PC with Windows 10, Cognex 8514 vision card and automeasure for measuring and inspection Optional: Nikon RI-3600L rotary indexer The RI-3600L can rotate the image of a workpiece and display it with a 0.01º resolution. Because it can be controlled externally, it enables automatic measurements while controlling the posture of the workpiece. Minimum readout: 1” Control resolution: 0.01º Max. workpiece diameter: 75mm Operation mode: Auto or Manual Pre-set points: Point of origin and 3 others
