Máy đo 3D độ chính xác cao, camera CCD HD, đầu dò Renishaw - Cỡ lớn

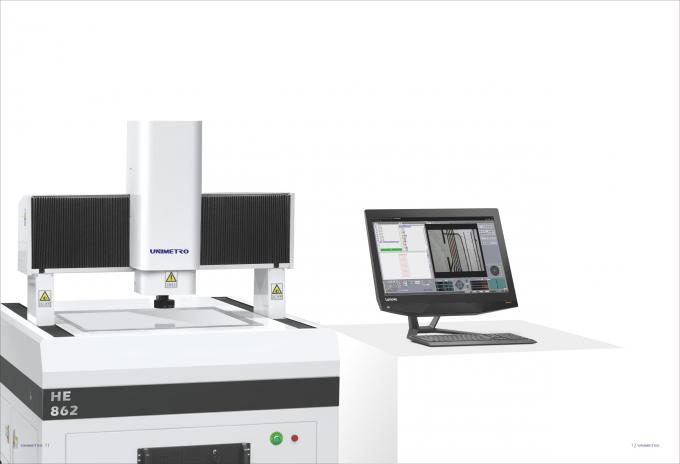

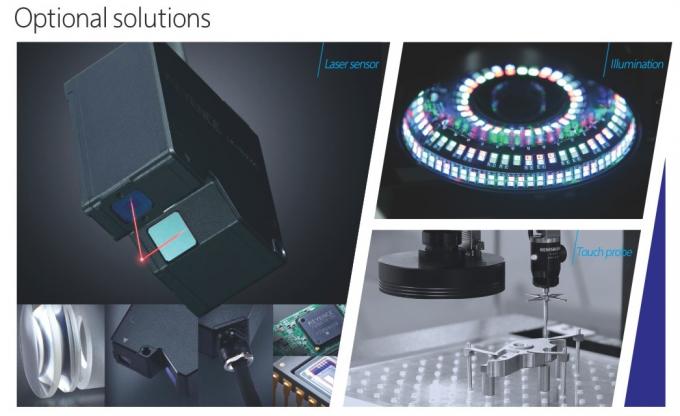

  HE Series Gantry Type CNC Automatic Vision Measurement Machine   The HE series high accuracy gantry type vision measurement machine combines high accuracy and high efficiency, offers high speed measuring for the geometric elements of different kinds of parts. The HE series is widely used in varies industries and products as PCB, copper clad laminate, large glasses, LCD modules, and insulation materials etc.   Finite elements analysis is introduced in the designing process of the HE series, ensures high rigidity and accurate mechanical structure. The machine base is using closed frame movable bridge type structure, which is simple and offers high loading capability and the best motion performance.   000 grade granite machine base, offers high rigidity, corrosion resistance and high stability.   The work stage is able to preset multiple products fixturing solution, also multiple lens combination is for option, satisfy different measuring requirement from different customers.   Full close loop motion control system ensures the best movement and positioning performance.     With the finite element analysis and the 000 grade granite, we get the most reasonable and optimized machine frame design, which ensures high rigidity and reliability.   The HE series high efficiency large size vision measurement machine is using UWC motion controller and high torque motors, offers high performance motion control, the high acceleration and fast locating offers high efficiency in the measuring process.   UWC large size vision measurement machine solution package, Panasonic motors for option   The machine frame is with moving gantry structure which ensures a simpler, smarter structure with higher loading and better movement Performance.     X/Y axis use accurate liner guide way, Z axis uses high performance cross rail with the original German friction driven group.   Renishaw linear scales included, with high accuracy, stability and long life cycle.   According to users’ requirements the working stage is able to preset with multiple type of products fixtures, also multiple lens and cameras combination option are available, gives more flexibility to users.   With the powerful Rational-Vue software users can achieve complicated measuring programs easily. In the mass production the HE series vision measurement machine can be a powerful measuring instrument.       Parameters       Joystick control
