CÂN CHÍNH XÁC FZ-120I 122G/0.001G

Weighing capacity		122 g
Minimum weighing value		0.001 g
Counting mode	Minimum unit mass	0.001 g
	Number of samples	5, 10, 25, 50 or 100 pieces
Percent mode	Minimum 100% reference mass	0.100 g
	Minimum 100% display	0.01 %, 0.1 %, 1 % (depends on the reference mass stored)
Repeatability (Standard Deviation)		0.001 g
Linearity		±0.002 g
Stabilization time (when set to FAST)		Approx. 1 second
Sensitivity drift (10°C to 30°C)		±2 ppm / °C
Operating temperature		5 °C to 40 °C (41 °F to 104 °F), 85 %RH or less (no condensation)
Display type		Vacuum Fluorescent Display (VFD)
Display refresh rate		5 times /second, 10 times /second or 20 times /second
Standard serial interface		RS-232C Interface
Weighing pan (diameter)		130 mm
External calibration mass		100g
		50g
AC adaptor		Confirm that the adaptor type is correct for the local voltage and power receptacle
Power consumption		Approx. 11VA (supplied to the AC adaptor)

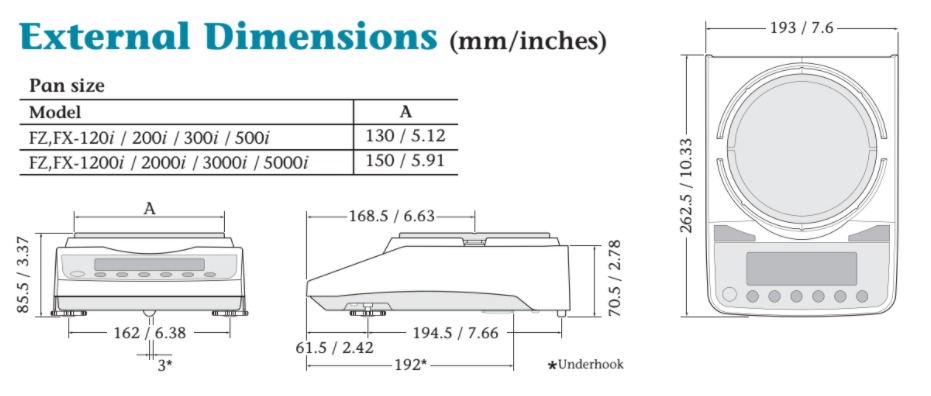

External dimensions		193 (W) X 262.5 (D) X 85.5 (H) mm
Net weight		FZ-i Approx. 3.0 kg / FX-i Approx. 2.5 kg

The FZ-i/FX-i Series, a new addition to A&D’s precision balances, rivals our GX/GF Series in performance and quality, but offers higher accessibility, bringing to you a cost-effective solution for a diverse array of applications.

Newly developed, Air-pump Controlled Internal Calibration

For the internal calibration of the FZ-i Series, A&D adopted a direct-driving method that utilizes air pressure for its power source. This new method features a simple structure, high reliability and a fail-safe mechanism – the internal mass returns to the original position even if the calibration is interrupted by power failure, etc.

One Touch Automatic Calibration

With just one press of a key, you can ensure the accuracy of your balance.

Compact, B5 Size Footprint

By taking advantage of our Compact Super Hybrid Sensor (C-SHS) technology , A&D has significantly reduced the size of the FZ-i/FX-i Series – 25% smaller footprint than the GX/GF Series, making it ideal for installation and use in narrow spaces. Fast, 1 Second Stabilization The C-SHS combines the best of magnetic force restoration and single point parallelogram load sensing technologies. This allows the C-SHS to realize a response speed of just 1 second while maintaining extremely high span stability. The FZ-i/FX-i Series will maximize your productivity and efficiency. Shock Absorber Function The internal shock absorber protects the C-SHS from the adverse effects of vertical and transverse overloading. RS-232C Interface (standard) Bi-directional communication is possible with a PC, printer or other peripheral devices. Quick USB Interface (FXi-02) The easy-to-use optional USB interface requires no driver or software installation for transfer of weighing data to a PC.

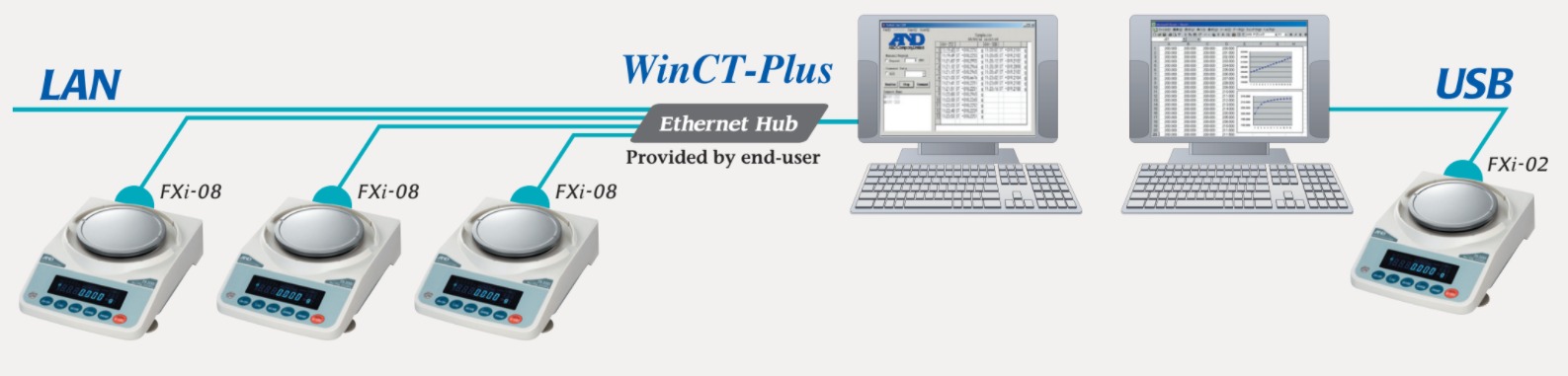

LAN-Ethernet Interface (FXi-08) with WinCT-Plus Software

WinCT-Plus software makes it possible for the user to easily set up an IP address, subnet mask, etc. The user can also send commands for controlling and acquiring data from multiple balances. Multiple Weighing Units Programmable or standard weighing units of measurement can be selected; g, pcs, %, oz, lb, L oz, ozt, ct, mom, dwt, GN, tl, tol, mes and MLT GLP/GMP/GCP/ISO Compliant In accordance with GLP and LIMS regulations, the balance ID number and calibration data can be printed out using A&D’s AD-8121B or a PC Statistical Calculation Function The balance displays and/or output statistical calculation data as No. (number of data), SUM (total), MAX (maximum), MIN (minimum), R [range (maximum – minimum)], AVE (average), SD (standard deviation) and CV (coefficient of variation) Response Adjustment Function Selectable FAST, MID or SLOW response to suit weighing environment conditions. ACAI – Automatic Counting Accuracy Improvement For the counting function, the balance recalculates the average unit weight each time samples are added to eliminate errors caused by variations in unit weight. Built-in Rechargeable Battery (FXi-09) An optional Ni-MH rechargeable battery pack can be fitted into the FZ-i/FX-i Series for use without AC power and for mobile applications (10 hours charging time for 8 hours operation) Catalogue: FZ-FX-i Series ENG
