Mô tả sản phẩm

Large scientific CMOS sensor (SONY or GSENSE Back-illuminated CMOS sensor);
Wide spectrum range, some models even have high response from ultra-violet to infrared wavelength;
Real-time 8/12bit depth switch(depending on sensor);
Ultra-fine HISP VP and USB3.0 5 Gbps interface ensuring high frame rates(Up to 30 frames for 10M resolution);
Ultra low noise and low power dissipation by using column-parallel A/D conversion;
With hardware resolution from 4.2M to 10.3M;
Rolling Shutter or Global Shutter;
Standard M42 mount and M42 to C-mount or F-mount;
CNC aluminum alloy housing;
With advanced video & image processing application ToupView;
Providing Windows/Linux/Mac OS multiple platforms SDK;
Native C/C++, C#/VB.Net, DirectShow, Twain;

BIGEYE Series M42 and M42 to C or F Mount USB3.0 CMOS Camera(11)

BIGEYE adopt SONY Exmor or GSENSE CMOS sensor as the image-picking device and USB3.0 is used as the transfer interface. BIGEYE hardware resolutions range from 4.2M to 10M and come with the integrated CNC aluminum alloy compact housing. BIGEYE integrated with 12 bit Ultra-fine Hardware Image Signal Processor Video Pipline(Ultra-fine^TM HISPVP) for Demosaic, Adjustments, Automatic Exposure, Gain Adjustment, One Push White Balance, Chrominance Adjustment, Saturation Adjustment, Gamma Correction, Luminance Adjustment, Contrast Adjustment, Bayer and finally form RAW data for 8/12 bit output. This will move the heavier burden of the processing from the PC to the Ultra-fineTM HISPVP and greatly accelerating the processing speed. BIGEYE comes with advanced video & image processing application ToupView; Providing Windows/Linux/ OSX multiple platforms SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API; The BIGEYE can be widely used in bright field light environment and microscope image capture and analysis with higher frame rate.

Order Code	Sensor & Size(mm)	Pixel(μm)	G Sensitivity Dark Signal	FPS/Resolution	Binning	Exposure
BIGEYE10000KPA BP910000A(New)	10.3M/IMX294(C) 4/3 “(17.47x12.86)	4.63 x4.63	419mv with 1/30s 0.12mv with 1/30ss	30@3704x2778 34.5@4096x2160 39.5@2760x2072 62@2048x1080 86@1360x720	1x1, 1x1, 1x1, 2x2, 3x3	0.1ms~15s
BIGEYE4200KMA BM94200A(New)	4.2M/GSENSE2020S(M,RS or GS) 1.2”(13.31x13.31)	6.5x6.5	8.1x107 (e-/((W/m2).s)) Peak QE 64.2% @595nm DS	45@2048x2046 45@1024 x 1023	1x1 2x2	0.01ms~1000s
BIGEYE4200KMB BM94200B(New)	4.2M/GSENSE2020BSI(M,RS or GS) 1.2”(13.31x13.31)	6.5x6.5	8.1x107 (e-/((W/m2).s)) Peak QE 64.2% @595nm DS	45@2048x2046 45@1024 x 1023	1x1 2x2	0.01ms~1000s

C: Color; M: Monochrome; GS: Global Shutter, UV: Good UV response Spectral response of GSENSE2020e and GSENSE2020s Spectral Response of GSENSE2020BSI

OTHER HARDWARE CONFIGURATION
Spectral Range	200-1100nm (UV without IR-cut Filter) or 400-900nm
White Balance	ROI White Balance/ Manual Temp-Tint Adjustment
Color Rendering Technique	Ultra Fine Color Engine
Capture/Control API	Native C/C++, C#, Directshow, Twain, Labview
Recording System	Still Picture and Movie
Cooling System*	Natural
OPERATING ENVIRONMENT
Operating Temperature	-10℃~ 50℃
Storage Temperature	-20℃~ 60℃
Operating Humidity	30~80%RH
Storage Humidity	10~60%RH
Power Supply	DC 5V over PC USB Port
SOFTWARE ENVIRONMENT
Operating System	Support Microsoft Windows XP / Vista / 7 /8 /10(32 & 64 bit) OS X (Mac OS X), Linux
PC Requirements	CPU: Equal to Intel Core2 2.8GHz or Higher
	Memory: 2GB or More
	USB port: USB2.0 High-speed Port
	Display: 17" or Larger
	CD-ROM

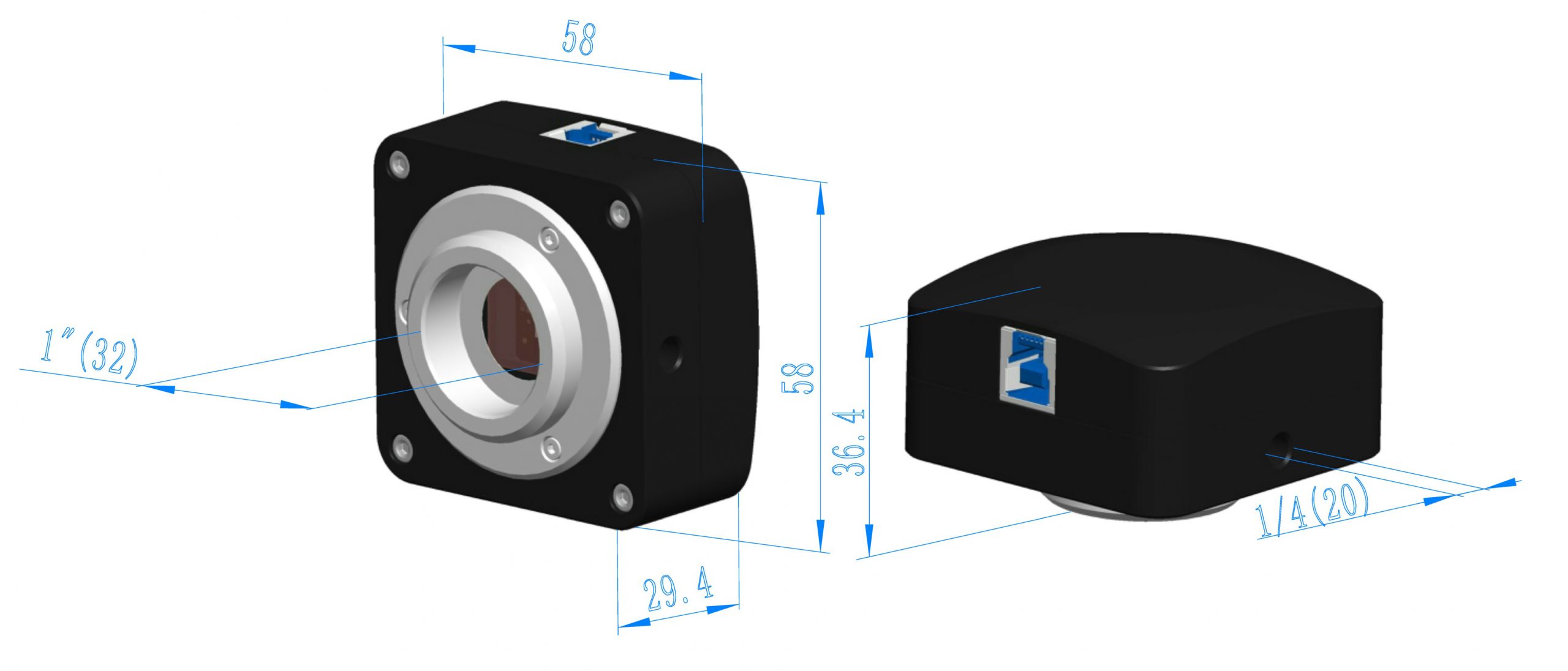

Dimension of BIGEYE Series Camera

Installation drawings(Click to enlarge). The BIGEYE body, made from CNC alumnium alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. This design ensures a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.
