Extended temperature range accelerometer, straight exit
The CMSS 2106 accelerometer is a multi-purpose sensor with an elevated temperature resistance to extend life and performance in applications that are known to provide a challenging hot environment The sensor is most commonly deployed in the following industries:
• Pulp and Paper – dryer sections
• Mineral Processing – ovens and kilns
• Metalworking – hot rolling mills
Features
• Optimal for use with SKF on-line system IMx and all portable data collection instruments
• Rugged, economical and all around high temperature, general purpose sensor for up to 150 °C (300 °F) operating temperature
• 100 mV/g sensitivity to optimize use in multiple applications
• Exceptional bias voltage (BV) stability at elevated temperatures
• Designed for exceptional low noise level over a wide temperature range
• Meets CE, EMC requirements

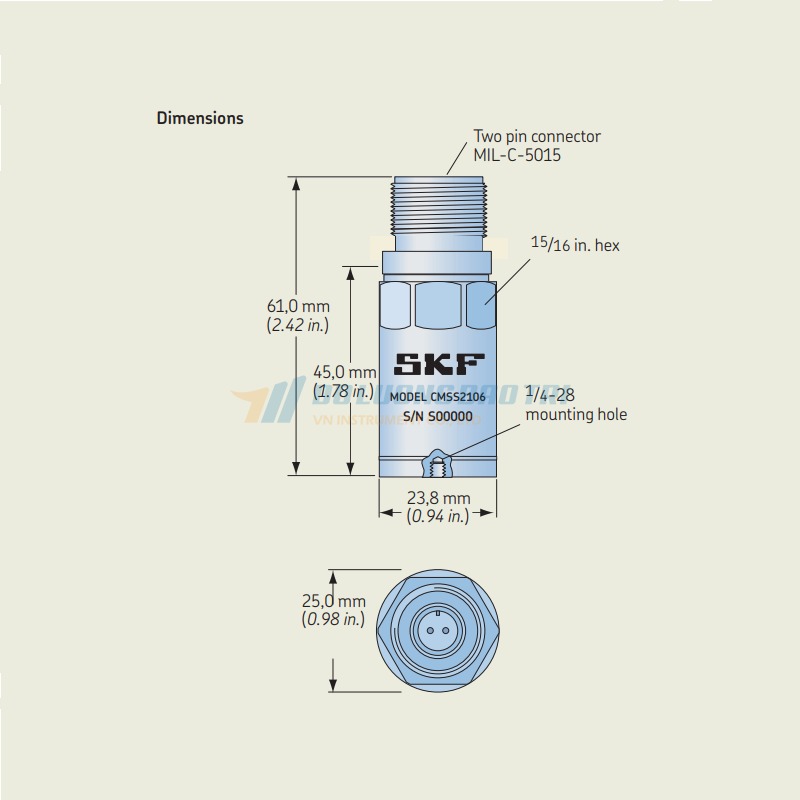

• Two mounting studs 1/4-28 and M8 × 1,25) provided
• Corrosion resistant and hermetically sealed for installation in high humidity areas
• Reverse polarity wiring protection
