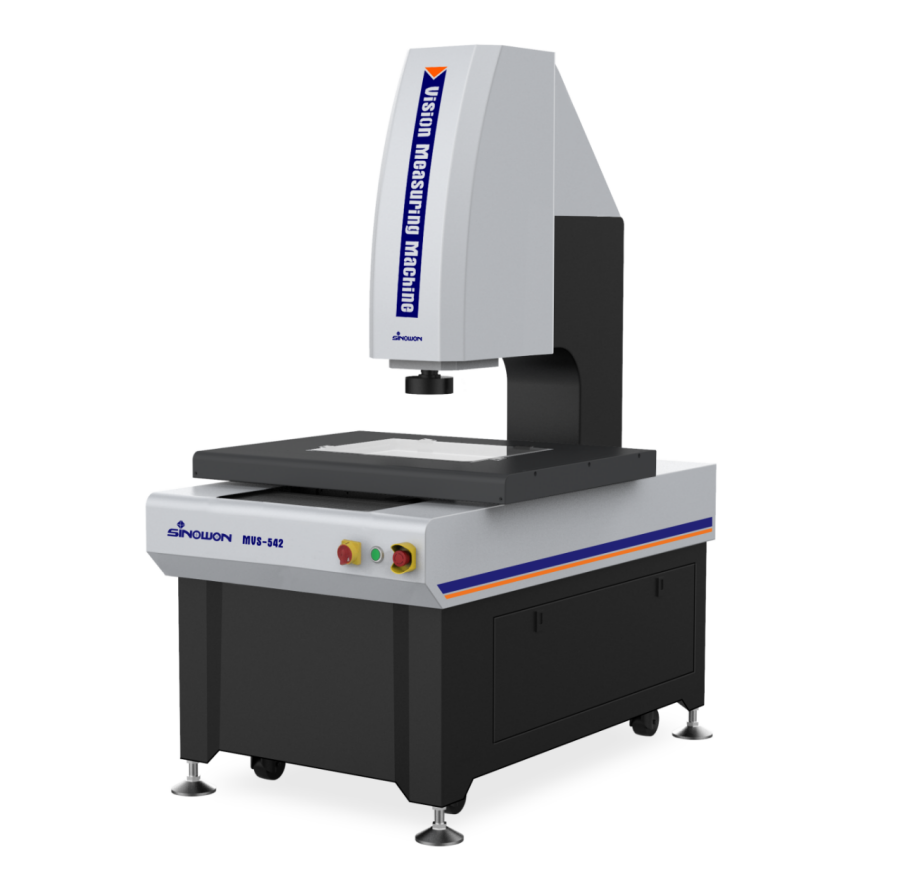

Automatic Vision Measuring Machine MVS-542 Series

◆ XYZ three-axis CNC automatic precision control, precise positioning; ◆ Indian Marble base and pillar, good stability; ◆ Precision linear guides, grinding-grade ball screws and AC servo motors, etc., ensure the accuracy and stability of the motion system; ◆ 0.5μm high-precision grating ruler to ensure the positioning accuracy and measurement accuracy of the system; ◆ High-resolution digital camera to meet the needs of clear observation and precise measurement; ◆ 8.3X high-definition optical lens, accurate zoom, one-time pixel correction; ◆ Program-controlled 5-ring 8-area LED surface illumination and parallel LED contour illumination system intelligently realize 256-level brightness adjustment; ◆ iMeasuring series automatic Vision measurement software, powerful and easy to operate. Note： L is measured length(mm), the mechanical accuracy of Z-axis and focus accuracy is greatly related to the surface of the workpiece. **Magnification is approximate value, it is related to the dimension of monitor and resolution. Field of view(mm) = (diagonal*Horizontal*Vertical) 0.5X or 2X objective is optional available and realize image magnification: 13X~86X or 52X~344X.
