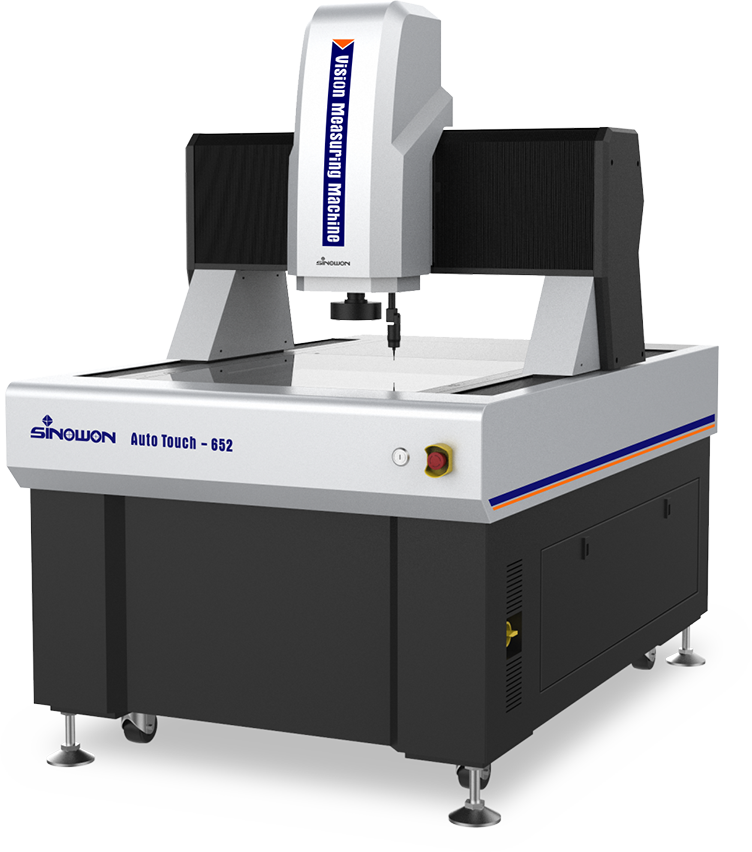

Automatic Vision Measuring Machine AutoVision652 Series

  ◆ Moving Bridge type structure, measuring workpiece is fixed; ◆ Four-axis CNC fully auto close loop control, auto measurement; ◆ Indian Marble base and pillar, good stability; ◆ Imported RSF linear scale, resolution is 0.1um, grinding ball screw and AC servo motor etc. to ensure the precision and stability of the motion system; ◆ Imported HD color camera to meet the needs of clear observation and accurate measurement; ◆ 8.3x high-resolution motorized coaxial zoom lens, accurate doubling and one times pixel correction only needed; ◆ With programmable surface 5-ring 8-division LED Cold Illumination and contour LED parallel illumination and built-in intelligent light adjustment, it can automatically control the brightness in the 8-division; ◆ Powerful function and easy operation iMeasuring Software to enhance quality control; ◆ Optional MCP Probe and Laser Senser Module. Machines can be customized according to customers’requirements. Note： L is measured length(mm), the mechanical accuracy of Z-axis and focus accuracy is greatly related to the surface of the workpiece. **Magnification is approximate value, it is related to the dimension of monitor and resolution. Field of view(mm) = (diagonal*Horizontal*Vertical) 0.5X or 2X objective is optional available and realize image magnification: 10X~64.5X or 40X~258X.
