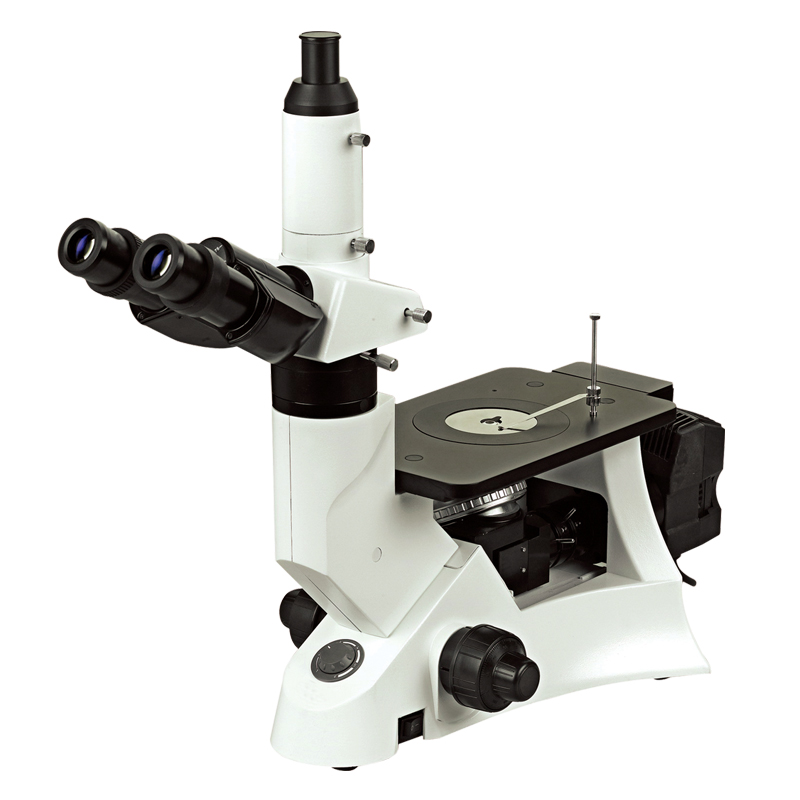

Inverted Metallurgical Microscope IMS-310

Danh mục:

Kính hiển vi các loại

Từ khóa:

3d vina , hiệu chuẩn , hiệu chuẩn thiết bị , Inverted Metallurgical Microscope IMS-310 , máy đo 2d , máy đo 3d , máy đo cmm , sinowon , sửa máy đo 2d , sửa máy đo 3d , sửa máy đo cmm

Vận chuyển giao hàng toàn quốc

Phương thức thanh toán linh hoạt

Gọi ngay 0974.692.294 để mua và đặt hàng nhanh chóng

Mô tả sản phẩm

Product Feature

◆ IMS-310 Infinitive Optical System Providing Excellent Optical Functions. With the stable stand structure, advanced stage design and comfortable operation, it is widely used in institute and laboratory to observe and identify the structure of various metal and alloy.

Specification

Product Name	Inverted Metallurgical Microscope IMS-310	Code#
Model	IMS-310	431-144
Eyepice	High-point , extra wide field eyepiece EW10×/ 20	431@514
Objectives	Inifitive Plan achromatic objective 4X/0.1 Inifitive Plan achromatic objective10X/0.25 Inifitive Plan achromatic objective20X/0.4(s) Inifitive Plan achromatic objective 40X/0.6	431-614 431-634 431@644 432-654
Viewing Head	Inclined 30°, interpupillary distance 48-75mm	431-504
Nosepiece	Quintuple Nosepiece	431-604
Focusing	Coaxial coarse & fine adjustment, Vertical objective movement, Coarse stroke 37.7mm per rotation, Fine stroke 0.2mm per rotation	431-704
Mechanical Stage	Plain stage, stage layer Ø110mm, hole Ø10mm,Ø15mm,Ø25mm Moving range 120X78mm,loading plate 128X86mm	431-404
Illuminator	6V/30W Halogen Lamp,Adjustable	431-804
Color Filter	Yellow,Blue,Green Color Filter and Ground Glass	432-304
Power Supply	AC220V/50Hz;110V/60Hz	431-814

Optional Accessories

Product Name	Code#	Product Name	Code#
Infinite Plan Achromatic 5x/0.25	431-664	Infinite Plan Achromatic 80x/0.9	431-684
Infinite Plan Achromatic 100x/0.80	431-694	Mechanical 226x178mm	431-414
1xC-mount(Available for Digital Camera)	431-714	USB Camera USB-A1	431-513
