Objective LensNikon Objective Lens Line-up

개요

Nikon 대물렌즈

특징

스펙

	Type	Magnification	NA	W.D. (mm)
Brightfield Type	T Plan EPI Plan (Semi-apochromat)	1X	0.03	3.80
	T Plan EPI Plan (Semi-apochromat)	2.5X	0.075	6.50

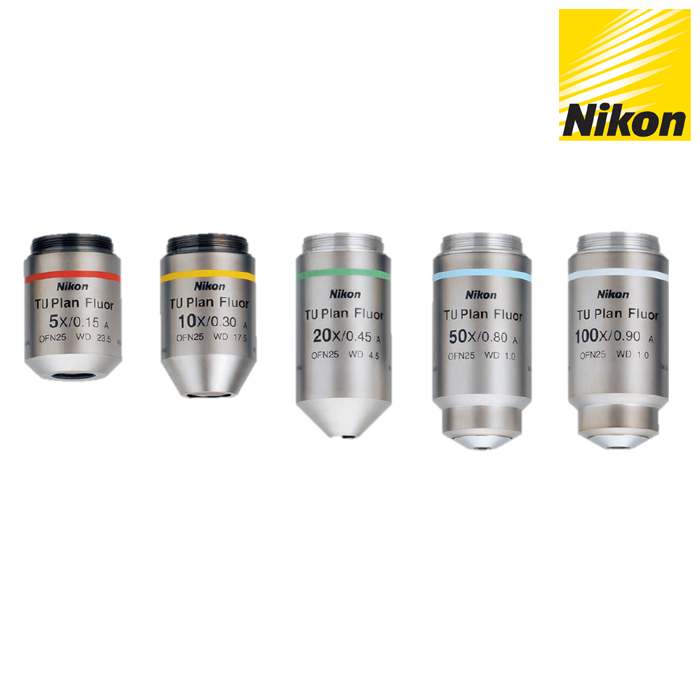

	TU Plan Fluor EPI Universal Plan Fluor (Semi-apochromat)	5X	0.15	23.50
		10X	0.30	17.30
		20X	0.45	4.50
		50X	0.80	1.00
		100X	0.90	1.00
	TU Plan Apo EPI Universal Plan Apo (Apochromat)	50X	0.80	2.00
		100X	0.90	2.00
		150X	0.90	1.50
Polarizing	TU Plan Fluor EPI P Polarizing Universal Plan Fluor (Semi-apochromat)	5X	0.15	23.50
		10X	0.30	17.30
		20X	0.45	4.50
		50X	0.80	1.00
		100X	0.90	1.00
Brightfield Long Working Distance	TU Plan EPI ELWD Long Working Distance Universal Plan (Semi-apochromat)	20X	0.40	19.00
		50X	0.6	11.00
		100X	0.80	4.50
Brightfield Super-long Working Distance	T Plan EPI SLWD Super-long Working Distance Plan (Semi-apochromat)	10X	0.20	37.00
		20X	0.30	30.00
		50X	0.40	22.00
		100X	0.60	10.00
Brightfield/ Darkfield Type	TU Plan Fluor BD Universal Plan Fluor (Semi-apochromat)	5X	0.15	18.00
		10X	0.30	15.00
		20X	0.45	4.50
		50X	0.80	1.00
		100X	0.90	1.00
	TU Plan Apo BD Universal Plan Apo (Apochromat)	50X	0.80	2.00
		100X	0.90	2.00
		150X	0.90	1.50
Brightfield/Darkfield Long Working Distance Type	TU Plan BD ELWD Long Working Distance Universal Plan (Semi-apochromat)	20X	0.40	19.00
		50X	0.60	11.00
		100X	0.80	4.50

Special-Use Type	CF IC EPI Plan DI For double-beam interferometry	10XA	0.30	7.40
		20XA	0.40	4.70
		50XA	0.55	3.40
		100XA	0.70	2.00
	CF IC EPI Plan TI For interferometry	2.5XA	0.075	10.30
	CF IC EPI Plan TI For interferometry	5XA	0.13	9.30

: Phase Fresnel lens (diffraction optical element) type
●A circular polarizing plate and depolarizer are built into T Plan EPI 1×/2.5×. (Circular polarizing plate can be attached/detached.)
