Compact Laser Line Scanner Offers Fast and Accurate CMM Inspection

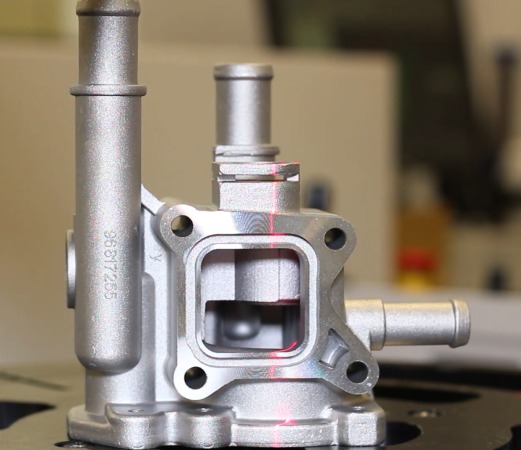

The XLP 3D Laser Scanners from CyberOptics provides versatile industry best speed, accuracy and resolution for laser line scanning technology on coordinate measuring machines (CMM) and are available in a variety of laser line lengths. With the ability to scan everything from small, highly detailed parts, to large automotive and aerospace parts, XLP probes are the answer for precise CMM laser scanning.
XLP laser probes are fully integrated with CyberOptics Surveyor 3D scanning systems and are also available to be retrofitted onto existing CMM’s. The XLP is available in models 250, 500 and 1000 with nominal line lengths of 35 mm, 50 mm and 86 mm with scanning accuracy of 6µm, 12µm and 24µm. The probes are fitted with the Renishaw PH10M universal joint and multiwire compatible for use with probe change racks.
Shorter Inspection Times
The XLP obtain high speed point cloud data collection with a 70% faster scan rate saving time with fast program set up with the Surveyor Scan Control (SSC) and direct plugins to inspection and reverse engineering software packages. The system scans efficiently with a gigabit ethernet connection that’s plug and play ready for existing CMM’s.

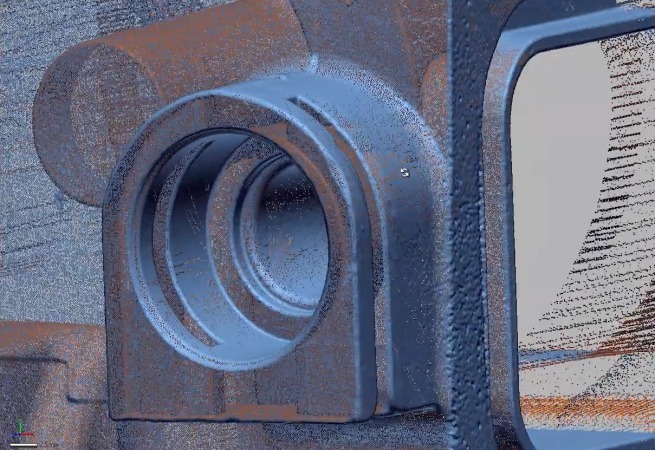

Generated 2D Point Cloud
High Accuracy and Resolution Performance
User gain an accurate 3D representation of a part or object with high resolution point cloud data with 50% improved accuracy and 30% higher resolution. NIST traceable factory calibration ensures the measurement results from the XLP correlate to international standards.
Versatility for Multiple Applications
The XLP 3D can scan a variety of surfaces and finishes without the need of special coatings with advanced suppression controls and 3D filtering features. The CMM scanning system can be used in a clean room, factory floor, or metrology lab. Common applications for the XLP laser scanner include: part-checking against CAD, dimensional inspection, GD&T measurements and reverse engineering.
For more information: https://www.cyberoptics.com/
